Hyundai Equus: Schematic Diagrams - Sun Roof - Body Electrical System - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: Schematic Diagrams

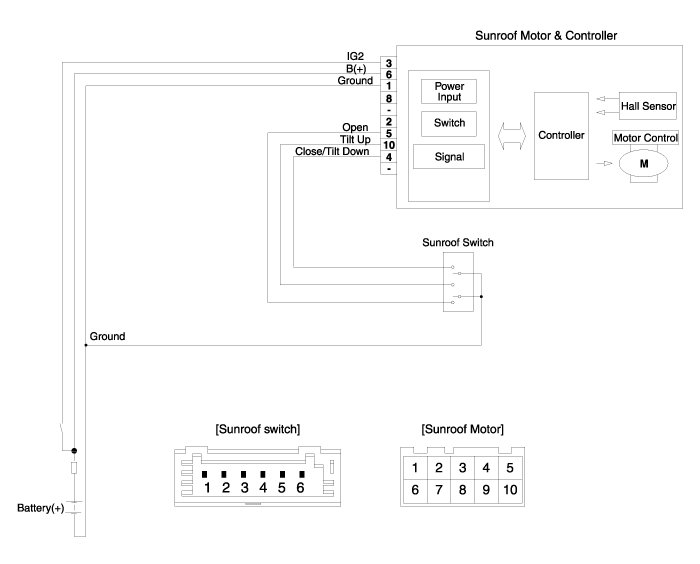

Circuit Diagram

    Components and Components Location
    Component Location 1. Sunroof2. Sunroof switch3. Sunroof motor & controller ...

    Sunroof Switch Repair procedures
    Inspection 1. Disconnect the negative (-) battery terminal. 2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console. Disconnect the sw ...
