Hyundai Equus: PGS Unit (Back & Blinde Unit) Schematic Diagrams
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body Electrical System / Parking Guide System (PGS) / PGS Unit (Back & Blinde Unit) Schematic Diagrams
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body Electrical System / Parking Guide System (PGS) / PGS Unit (Back & Blinde Unit) Schematic Diagrams

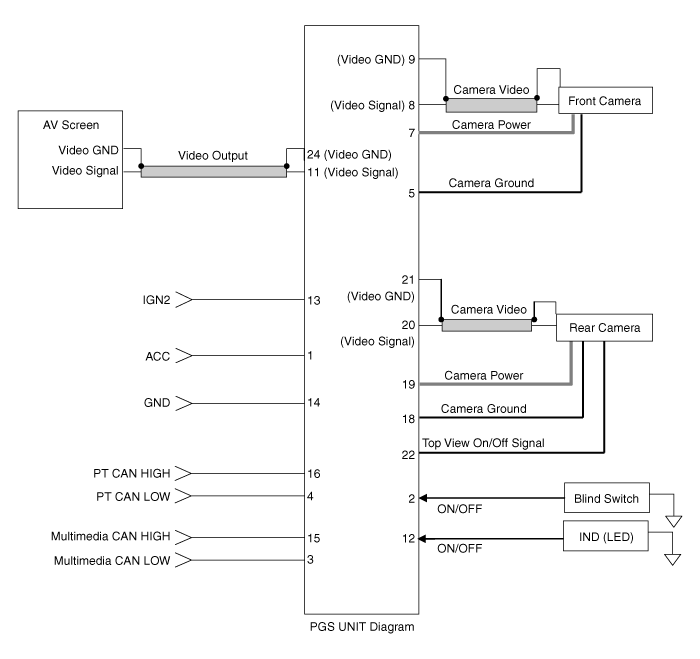

| Circuit Diagram |
PGS Unit (Back & Blinde Unit) Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the glove box housing (A).
(Refer to Body - "Crach Pad")
3.
Remove the glove box housing connector (A).
4.
Remove t ...
