Hyundai Equus: Refrigerant label

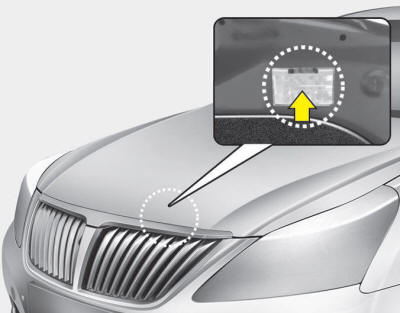

The refrigerant label is located on the underside of the hood.
The label contains the following information:
- Type of refrigerant
- Amount of refrigerant
