Hyundai Equus: Height Sensor Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Suspension System / Air Suspension System / Height Sensor Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Suspension System / Air Suspension System / Height Sensor Components and Components Location
| Components |
| Front Height Sensor |

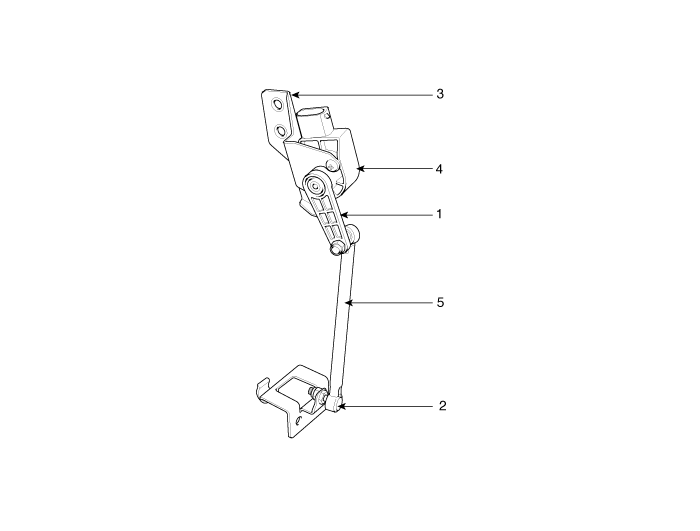

| 1. Lever 2. Braket 3. Braket | 4. Height sensor 5. Road |
| Rear Height Sensor |

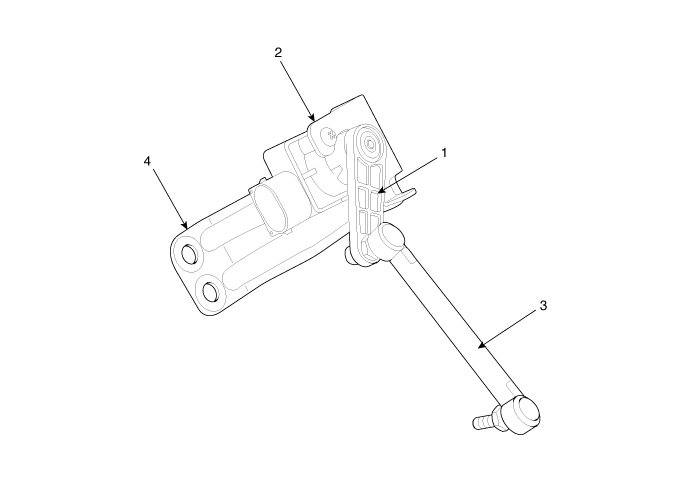

| 1. Lever 2. Height sensor | 3. Road 4. Braket |
ECU Repair procedures
Removal
•
Avoid suffering excessive impact.
•
Do not entering the water into pin inside.
•
Do not pile up the parts.
•
Take care not to damage the ...
Height Sensor Description and Operation
Description
The ground clearance sensor is one component of the ECS
system. This sensor is installed between the vehicle body and lower
suspension arm. It measures the ground clearance and sen ...
