Hyundai Equus: Rearview camera (If equipped)

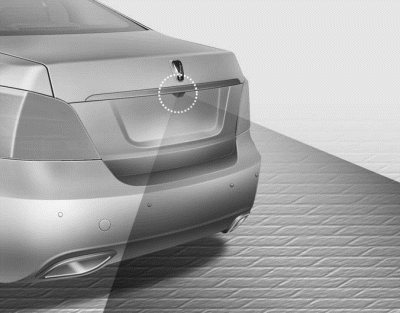

The rearview camera will activate when the back-up light is ON with the ignition switch ON and the shift lever in the R position.
This system is a supplemental system that shows behind the vehicle through the navigation display while backing-up.
WARNING
✽ NOTICE
The rearview camera may not operate normally, when you drive in the extremely high or low temperature areas (operating temperature : -4°F ~ 149°F (-20°C ~ 65°C)).
Self-diagnosis
Around view monitoring system (AVM) (If equipped)Headlight leveling device
Automatic type
It automatically adjusts the headlight beam level according to the number of
passengers and the loading weight in the luggage area.
It offers the proper headlight beam under various ...
Purge Control Solenoid Valve (PCSV) Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the PCSV connector.
3.
Measure resistance between the PCSV terminals 1 and 2.
4.
Check that the resistance is within the speci ...
