Hyundai Equus: Rear Wheel Speed Sensor Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Brake System / ESP(Electronic Stability Program) System / Rear Wheel Speed Sensor Components and Components Location

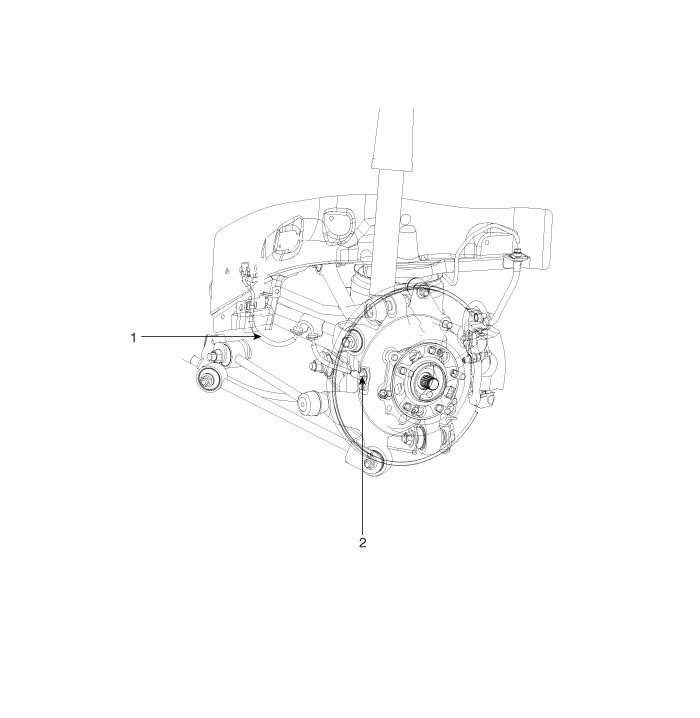

| Components |
| 1. Rear wheel speed sensor cable 2. Rear wheel speed sensor |
