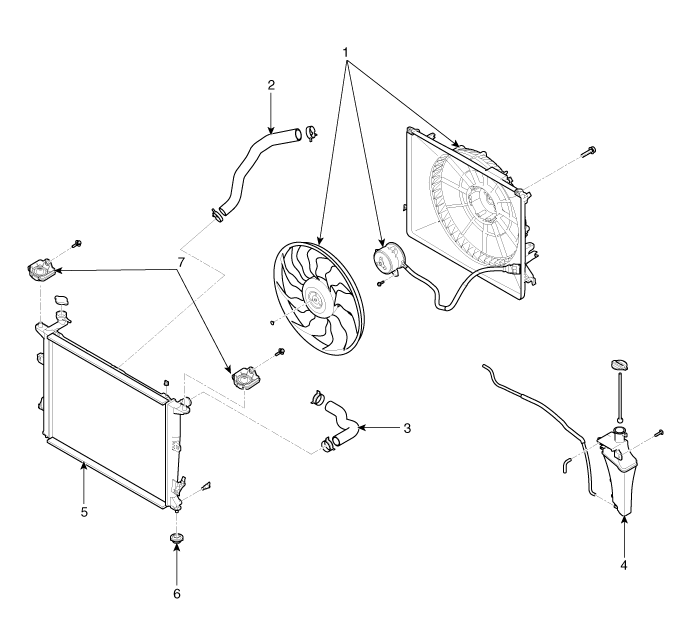

| Components |
| 1. Cooling fan assembly 2. Radiator lower hose 3. Radiator upper hose 4. Coolant reservoir tank | 5. Radiator 6. Mounting insulator 7. Mounting bracket |
Coolant Repair procedures
Engine Coolant Refilling And Bleeding
Never remove the radiator cap when the engine is hot. Serious
scalding could be caused by hot fluid under high pressure escaping from
...
Radiator Repair procedures
Inspection
Radiator Cap Testing
1.
Remove the radiator cap, wet its seal with engine coolant, then install it to pressure tester.
2.
Apply a pressure of 93 ~ 123kPa (0.95 ~ 1.25kgf/cmx, 14 ~ ...
