| Inspection |
Driver Power Window Switch
| 1. |
When checking the driver power window switch, select a vehicle type and "IPM" menu. |
| 2. |
Select "DDM (Driver Door Module)". |

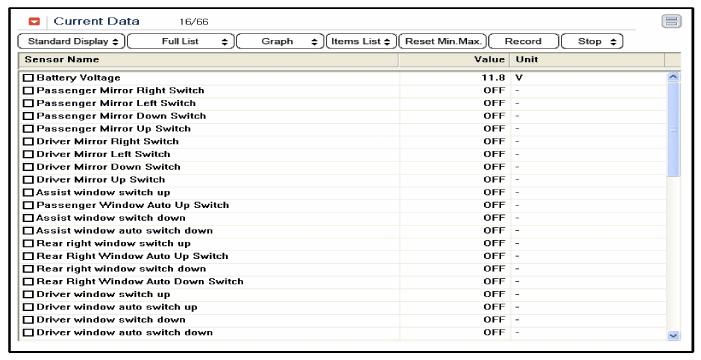

| 3. |
Select option "Input/Output monitoring".
|

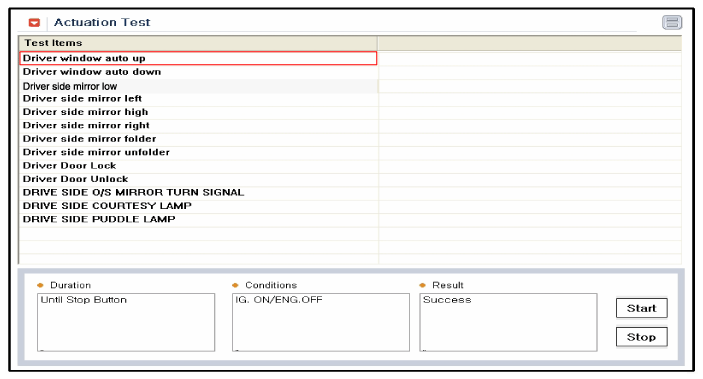

| 4. |
To check the input value of power window switch in force mode, select option "ACTUATION TEST".
|
Assist Power Window Switch
| 1. |
When checking the assist power window switch, select a vehicle type and "IPM" menu. |
| 2. |
Select "ADM (Assist Door Module)". |

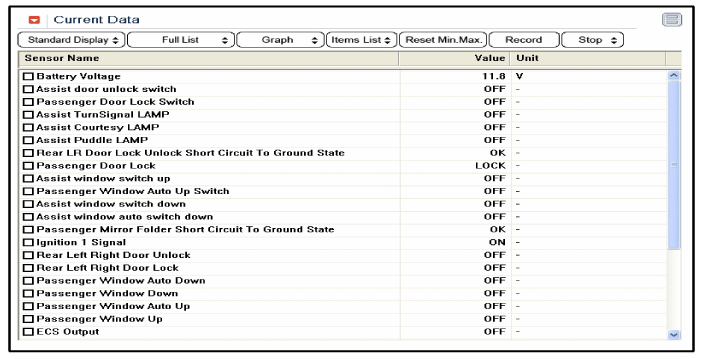

| 3. |
Select option "Input/Output monitoring".
|

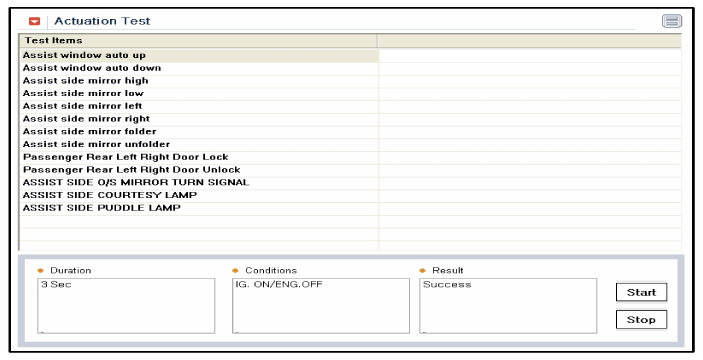

| 4. |
To check the input value of power window switch in force mode, select option "ACTUATION TEST".
|
Power Window Switch Components and Components Location
Components
Power Window Main Switch
Assist Power Window Switch
Rear Power Window Switch
...
