Hyundai Equus: ON/OFF Solenoid Valve Schematic Diagrams - Automatic Transmission Control System - Automatic Transmission System (SBC) - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: ON/OFF Solenoid Valve Schematic Diagrams

Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Automatic Transmission System (SBC) / Automatic Transmission Control System / ON/OFF Solenoid Valve Schematic Diagrams

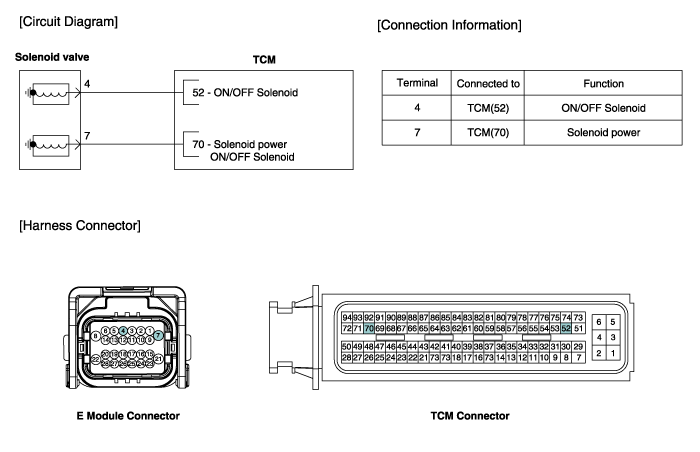

Circuit Diagram

    ON/OFF Solenoid Valve Specifications
    Specifications ON/OFF Solenoid Valve x Control type : Normal low type Control pressure kpa (kgf/cmx, psi)539.36(5.5, 78.23) Internal resistance(x)10~11 ...

    ON/OFF Solenoid Valve Repair procedures
    Inspection 1. Turn ignition switch OFF. 2. Disconnect the E Module connector. 3. Measure resistance between sensor signal terminal and sensor ground terminal. 4. Check that the res ...
