| Component Location |

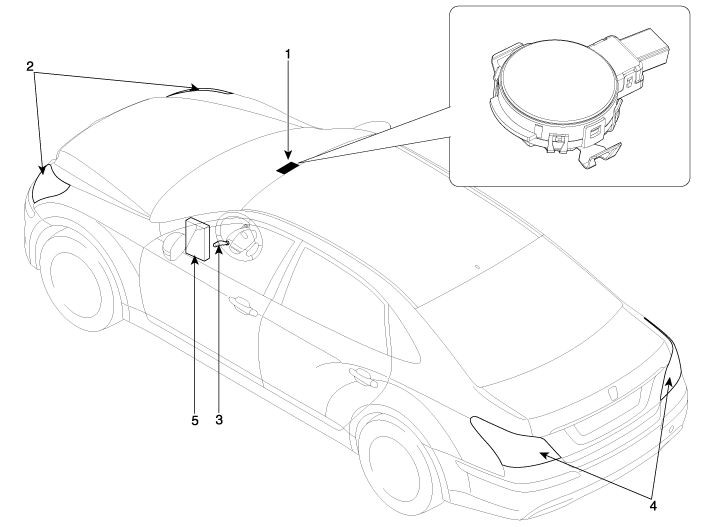

| 1. Auto light sensor 2. Head lamps 3. Lighting switch (Auto) | 4. Tail lamps 5. IPM (Instrument Panel Module) |
Specifications
Specifications
ItemsSpecificationsRated voltage5VLoadMax. 1mA (Relay load)Detection illuminationsTail lampON : 74 ± 16 (Lux), 2.36 ± 0.08 (V)OFF : 148 ± 32 (Lux), 4.52 ± 0.1 (V)Head lampON : ...
Description and Operation
Description
In the state of IGN1 ON, when the multi function switch
module detects auto light switch on, tail lamp relay output and head
lamp low relay output are controlled according to the ve ...
