| Components |

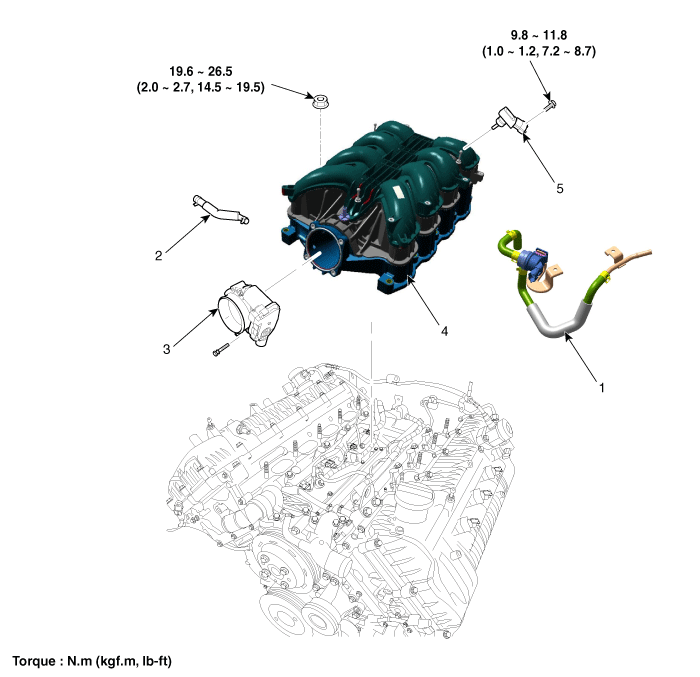

| 1. Purge control solenoid valve (PCSV) and hose 2. PCV hose 3. ETC module | 4. Intake manifold module 5. MAP sensor |
Intake Manifold Repair procedures
Removal and Installation
1.
Disconnect the negative terminal (A) from the battery.
Tightening torque :
3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)
2.
Remove the engine room cover (A ...
