Hyundai Equus: Line Pressure Control Solenoid Vale Schematic Diagrams
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Automatic Transmission System (SBC) / Automatic Transmission Control System / Line Pressure Control Solenoid Vale Schematic Diagrams
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Automatic Transmission System (SBC) / Automatic Transmission Control System / Line Pressure Control Solenoid Vale Schematic Diagrams

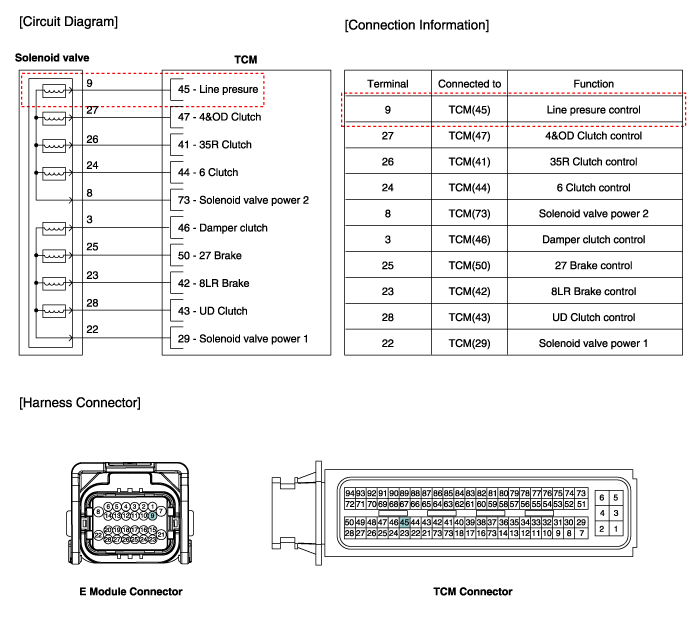

| Circuit Diagram |
Line Pressure Control Solenoid Vale Specifications
Specifications
Line Pressure Control VFS
x Control type : Normal high type
Control Pressure kpa (kgf/cmx, psi)0~500.14 (0~5.1,0~72.54)Current value(mA)0~850 Internal resistance ...
Line Pressure Control Solenoid Vale Repair procedures
Inspection
1.
Turn ignition switch OFF.
2.
Disconnect the E Module connector.
3.
Measure resistance between sensor signal terminal and sensor ground terminal.
4.
Check that the res ...
