Hyundai Equus: Recommended lubricants and capacities
Second generation VI (2009–2025) / Hyundai Equus 2009-2025 Owners Manual / Specifications, Consumer information and Reporting safety defects / Recommended lubricants and capacities
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.

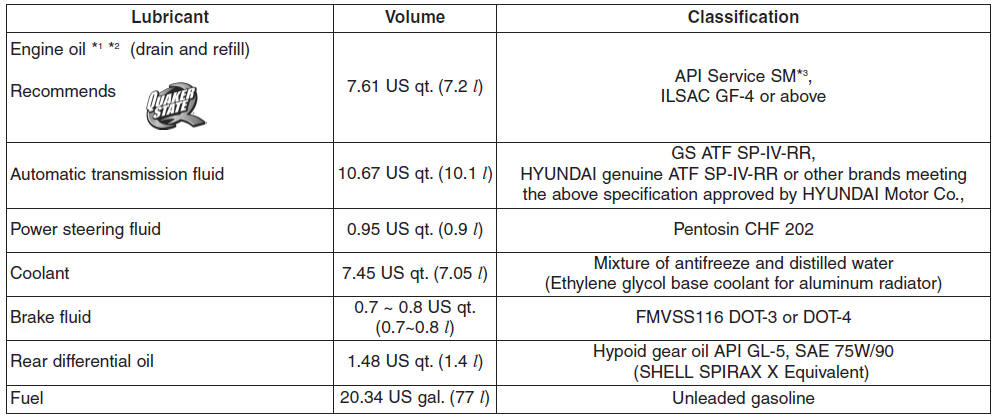

These lubricants and fluids are recommended for use in your vehicle.
Tires and wheels
CAUTION
When replacing tires, use the same size originally supplied with the
vehicle. Using tires of a different size can damage the related parts or make it
work irregularly.
✽ N ...
Recommended SAE viscosity number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick
before checking or draining any lubricant. This is especially important in dusty
or sandy areas and when t ...
