Hyundai Equus: Hood Assembly Components and Components Location
Second generation VI (2009–2025) / Hyundai Equus VI 2009-2025 Service Manual / Body (Interior and Exterior) / Hood / Hood Assembly Components and Components Location
Second generation VI (2009–2025) / Hyundai Equus VI 2009-2025 Service Manual / Body (Interior and Exterior) / Hood / Hood Assembly Components and Components Location

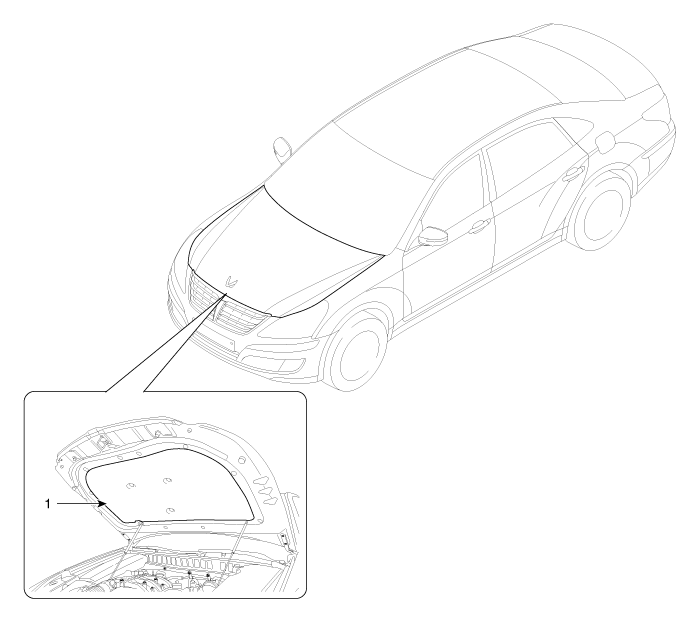

| Component Location |
| 1. Hood assembly |
Repair procedures
Adjustment
1.
After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up or down, or right or left.
2.
Adjust the hood height by turning the hood overslam bumpers (C).
...
Hood Assembly Repair procedures
Replacement
•
Be careful not to damage the hood and body.
•
When removing and installing the hood, an assistant is necessary.
•
Wh ...
