Hyundai Equus: Electronic controlled suspension (ECS) (If equipped)
Second generation VI (2009–2025) / Hyundai Equus 2009-2025 Owners Manual / Driving your vehicle / Electronic controlled suspension (ECS) (If equipped)
ECS controls the vehicle suspension automatically to maximize passenger comfort by using the air spring and controllable shock absorber in the suspension.
You can also control the vehicle height manually in NORMAL mode or HIGH mode.
DRIVE mode / SNOW mode
The drive mode may be selected according to the driver’s preference or road condition.
The system initializes to the NORMAL mode when the Engine Start/Stop Button is
turned off and on.
It is d ...
To control the vehicle height

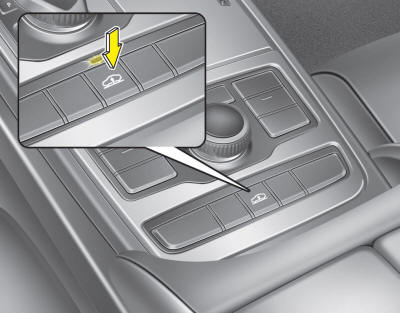

Push the vehicle height control button to select the HIGH mode that makes the
vehicle higher than the NORMAL mode and the indicator light on the vehicle height
control button will illuminate. It i ...
