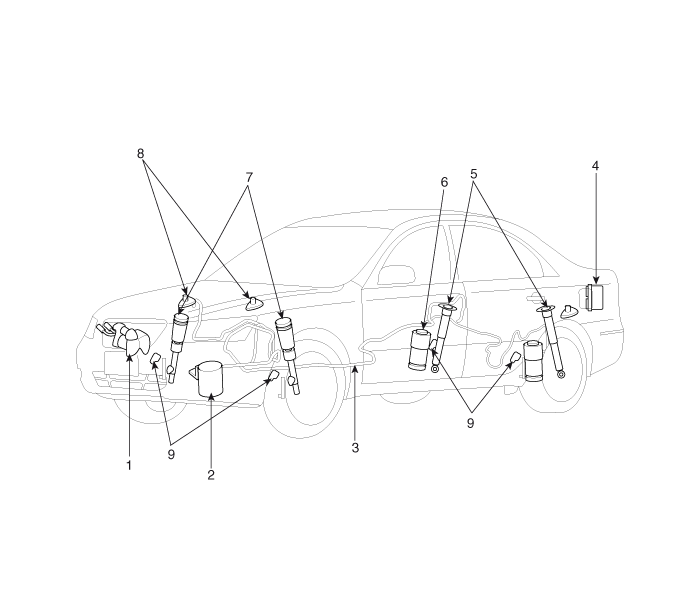

| Components Location |
| 1. Compressor 2. Air tank 3. Air tube 4. ECU 5. Rear CDC Damper | 6. Rear spring 7. Front air strut assembly 8. G-Sensor 9. Height sensor |
Specifications
Specifications
Front air strut
ItemsSpecificationAir spring volume at design position1.78xMaximum other bellow diameter118 mmBurst pressure31.5 barMinimum operating temperature-40°CMaximum operat ...
Description and Operation
Description
Active type ECS is applied and it includes the self leveling
function.As shown in the picture, it consists of air spring, damper,
reservoir tank, compressor (with dryer), solenoid ...
