Hyundai Equus: Fuel Pressure Control Valve Troubleshooting - Engine Control System - Engine Control/Fuel System - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: Fuel Pressure Control Valve Troubleshooting

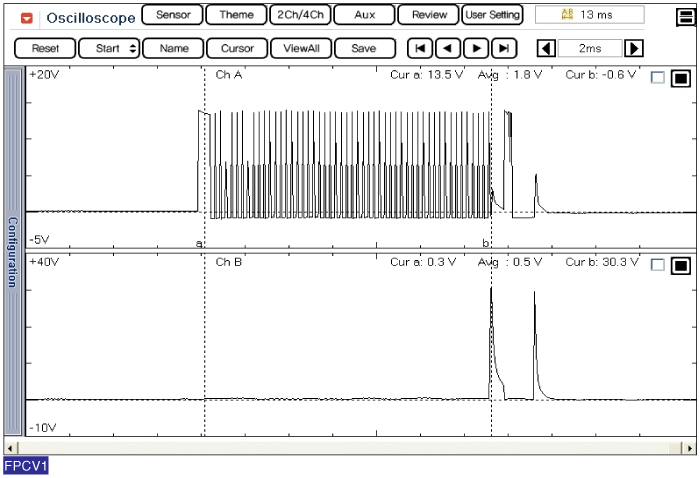

Signal Waveform

    Fuel Pressure Control Valve Specifications
    Specification ItemSpecificationCoil Resistance (x)0.47 ~ 0.51 [20°C(68°F)] ...

    Fuel Pressure Control Valve Schematic Diagrams
    Circuit Diagram ...
