| Component Location |

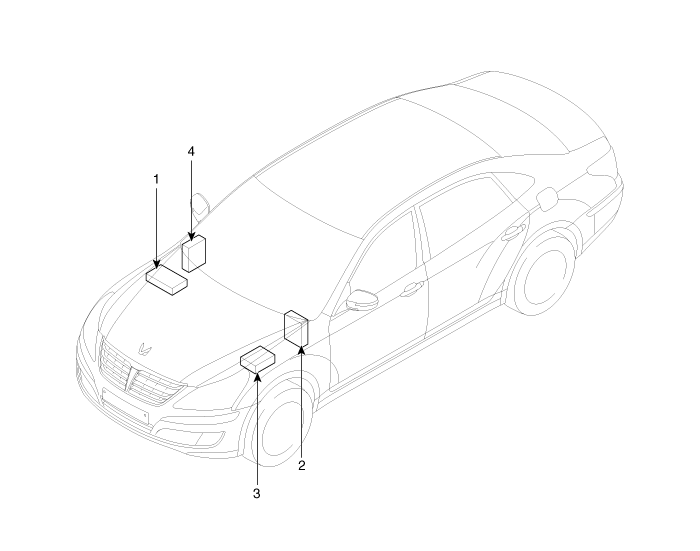

| 1. Engine room junction box & FAM (Front Area Module) 2. SJB (Smart Junction Box) | 3. Engine Room Fuse & relay box 4. Passenger compartment relay box (RH) |
