Hyundai Equus: Air bag

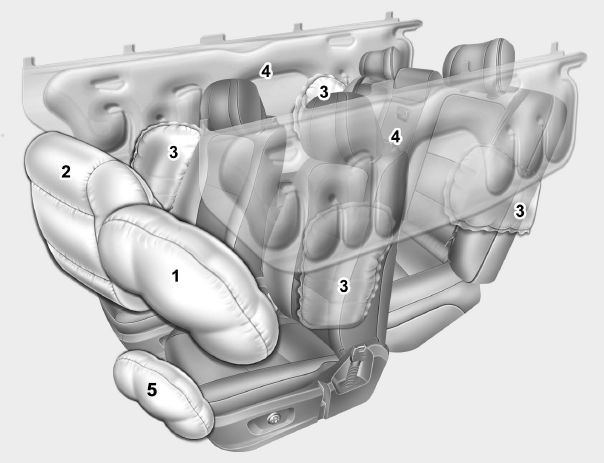

(1) Driver’s front air bag
(2) Passenger’s front air bag
(3) Side impact air bag
(4) Curtain air bag
(5) Driver’s knee air bag
WARNING
Even in vehicles with air bags, you and your passengers must always wear the seat belts provided in order to minimize the risk and severity of injury in the event of a collision or rollover.
- How does the air bag system operate
- SRS components and functions
- Occupant classification system
- Main components of occupant classification system
- Driver's and passenger's front air bag
- Side impact air bag
- SRS Care
Forward-Facing child restraints
A forward-facing child restraint provides restraint for the child's body with
a harness. Keep children in a forwardfacing child restraint with a harness until
they reach the top height or ...
How does the air bag system operate
Air bags are activated (able to inflate if necessary) only when the Engine
Start/Stop Button is turned to the ON or START position.
Air bags inflate in the event of a severe frontal or side co ...
