Hyundai Equus: Sunvisor Repair procedures - Roof Trim - Body (Interior and Exterior) - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Sunvisor Repair procedures

Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body (Interior and Exterior) / Roof Trim / Sunvisor Repair procedures

Replacement

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

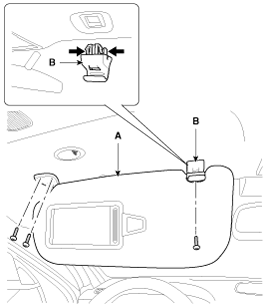

Loosen the mounting screws, then remove the sunvisor (A) and retainer (B).

2.
Disconnect the sunvisor lamp connector (A).

3.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
