Hyundai Equus: Sunvisor Components and Components Location

Components and Components Location

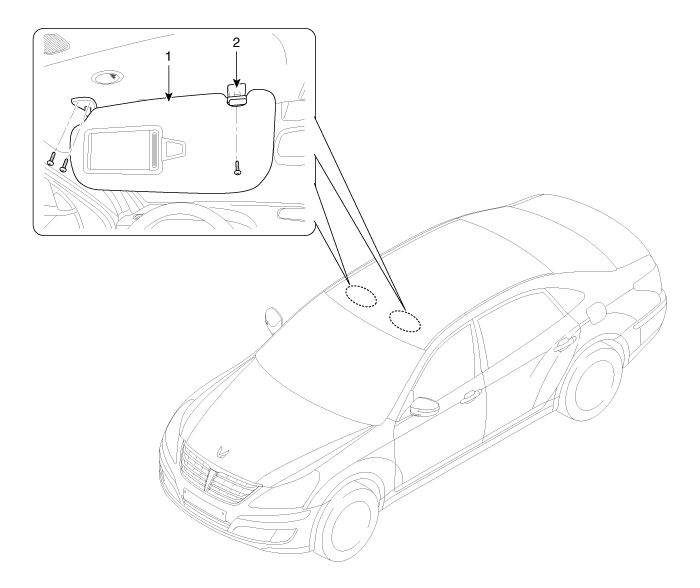

Components [Sunroof Type] 1. Roof trim2. Sunvisor [RH]3. Sunvisor [LH]4. Assist handle bracket [Limousine Type] 1. Roof trim2. Sunvisor [RH]3. Sunvisor [LH]4. Assist handle bracket ...

Sunvisor Repair procedures

Replacement     • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage. • ...
