| Components |

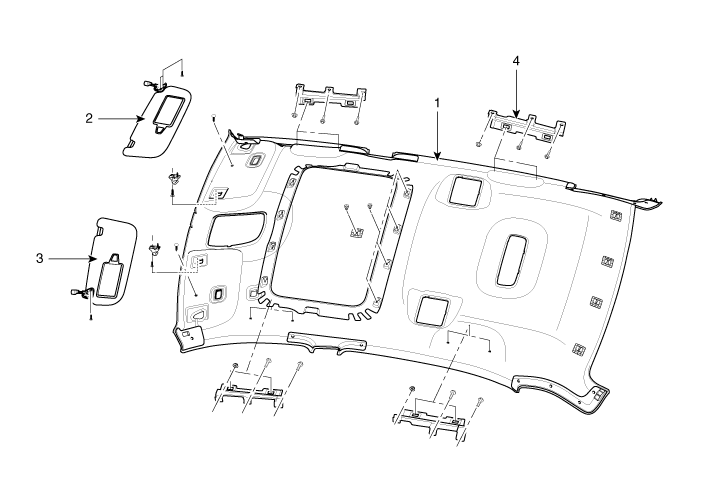

| [Sunroof Type] |
| 1. Roof trim 2. Sunvisor [RH] | 3. Sunvisor [LH] 4. Assist handle bracket |
| [Limousine Type] |
| 1. Roof trim 2. Sunvisor [RH] | 3. Sunvisor [LH] 4. Assist handle bracket |
Roof Trim
...
Sunvisor Components and Components Location
Component Location
1. Sunvisor2. Retainer
...
