Hyundai Equus: Sunroof Assembly Repair procedures - Sunroof - Body (Interior and Exterior) - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: Sunroof Assembly Repair procedures

Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Assembly Repair procedures

Replacement

•
Put on glove to protect your hands.

•
Take care not to scratch the interior trims and other parts.
1.
Remove the roof trim.
(Refer to Roof Trim - "Roof Trim Assembly")
2.
Remove the sunroof glass.
(Refer to Sunroof - "Sunroof Glass")
3.
Loosen the mounding bolts, remove the assist handle mounting bracket (A).

4.
Disconnect the drain tubes (A).
5.

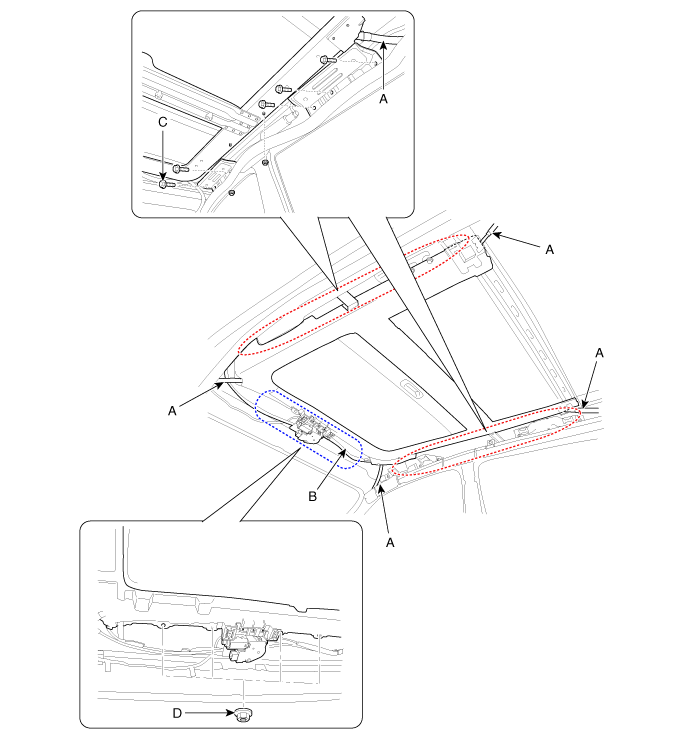

After loosening the mounding bolt and nuts, remove the sunroof assembly (B).

•
Take care not to scratch the interior trims and other parts.
Tightening torque :
(C) : 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
(D) : 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)
6.
Install in the reverse order of removal.

•
Make sure to initialize the motor.
