Hyundai Equus: Starter Components and Components Location
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Engine Electrical System / Starting System / Starter Components and Components Location
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Engine Electrical System / Starting System / Starter Components and Components Location

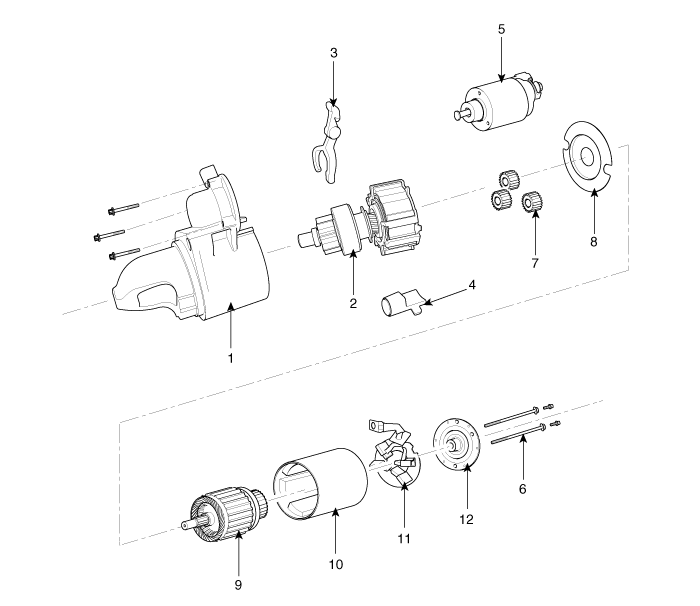

| Components |
| 1. Front bracket 2. Planet gear shaft assembly 3. Lever 4. Lever packing 5. Magnet switch 6. Through bolt | 7. Planet gear 8. Shield 9. Armature assembly 10. York assembly 11. Brush holder assembly 12. Rear bracket |
Starter Specifications
Specification
ItemSpecificationRated voltage12 V, 1.7 kWThe number of pinion teeth13Performance[No-load, 11.5 V]AmpereMax. 85 ASpeedMin. 2,550 rpm
...
Starter Schematic Diagrams
Circuit Diagram
...
