Hyundai Equus: Reservoir Tank Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Suspension System / Air Suspension System / Reservoir Tank Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Suspension System / Air Suspension System / Reservoir Tank Components and Components Location

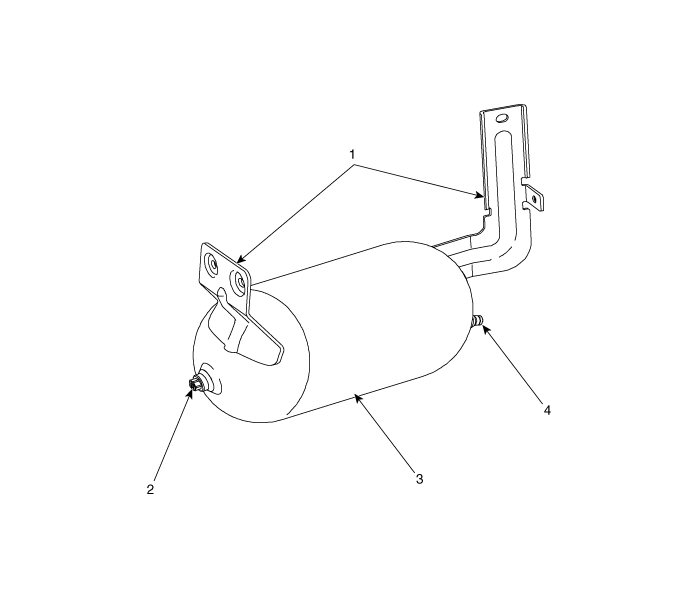

| Components Location |
| 1. Mounting Bracket 2. Pneumatic connection port | 3. Reservoir tank 4. Check Valves |
Air Filter Repair procedures
Removal
•
A plug protects the air inlet of the reservoir tank from dust
or other particles. Do not remove the plug except when assembling or
disassembling the reservo ...
Reservoir Tank Description and Operation
Description
The volume is 5.2 liter and the maximum operation pressure is 16bar. (Bursting pressure: 40bar)
The pressure of reservoir tank is monitored every 30 min while driving. ...
