Hyundai Equus: Repair procedures - Automatic Transmission System - Automatic Transmission System (SBC) - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: Repair procedures

EOL Input
Description
When shift shock is occurred or parts related with the transmission are replaced, EOL should be performed.
In the following case, EOL is required.
•
Transmission assembly replacement
•
TCM replacement
Bar code location

EOL Input procedure
•

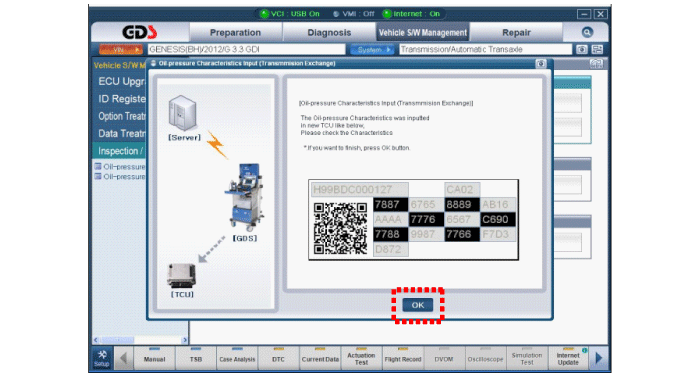

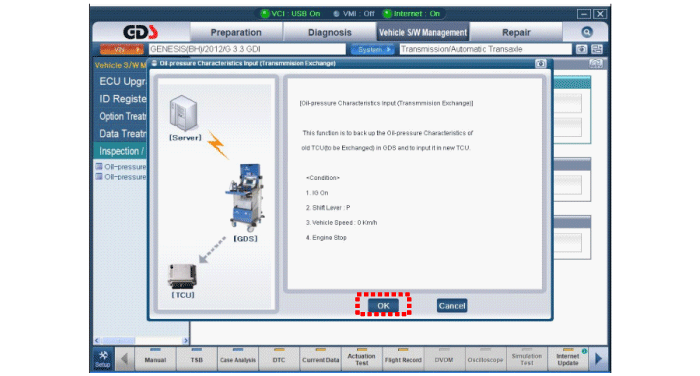

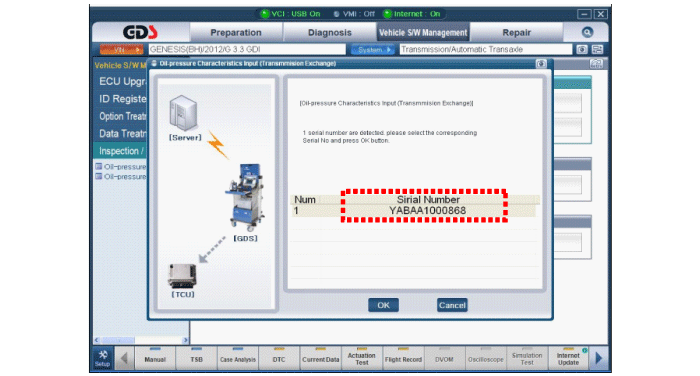

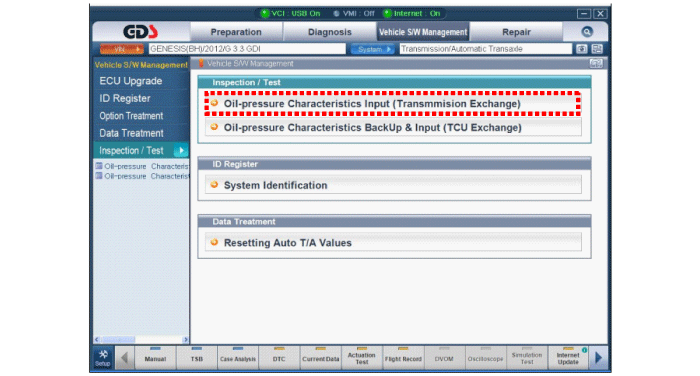

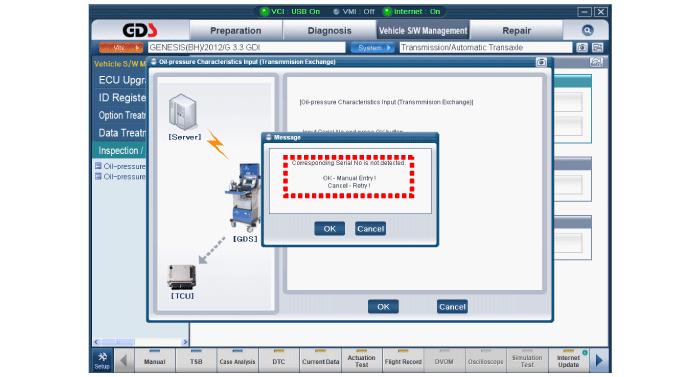

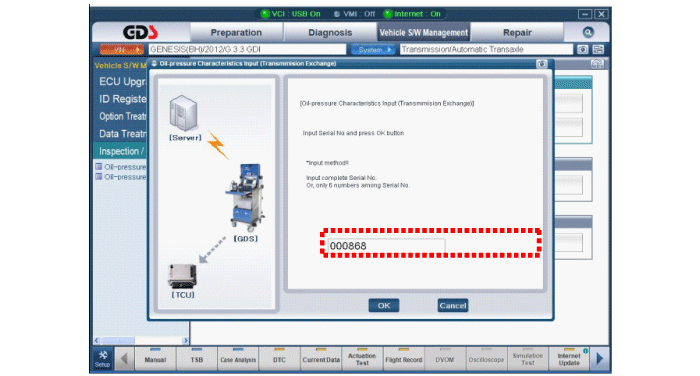

Transmission assembly replacement

Internet :On

Internet :Off

•

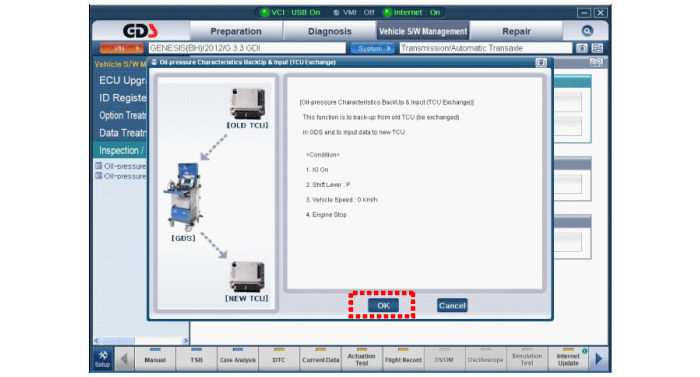

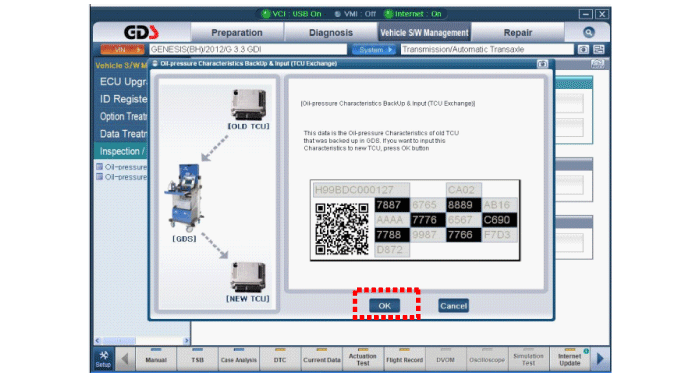

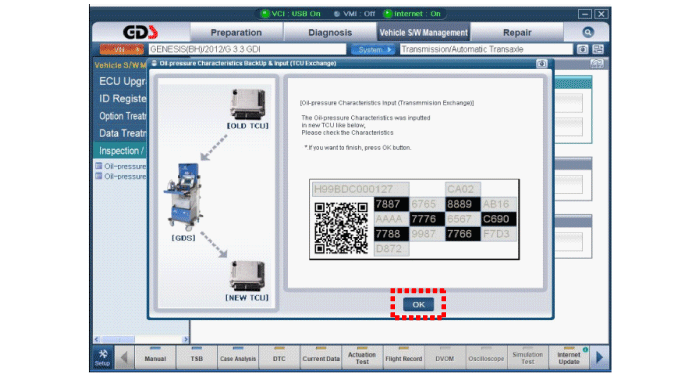

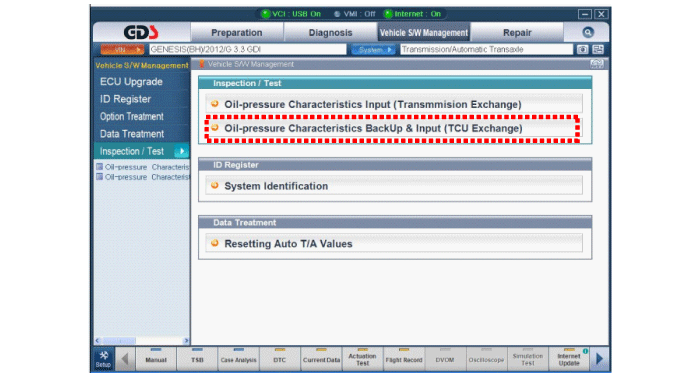

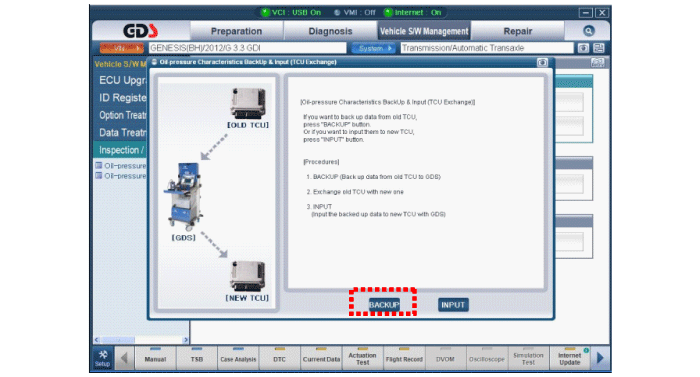

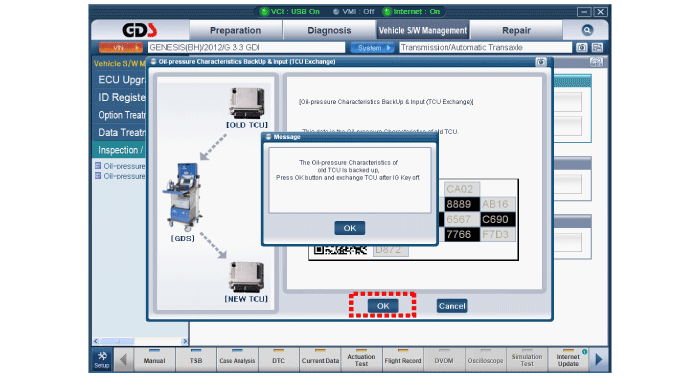

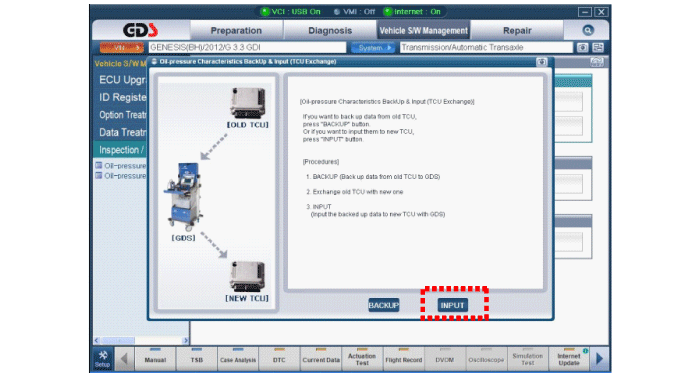

TCM replacement
