Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the luggage covering complete (A).
2.
Remove the luggage under cover (B).
3.
Install in the reverse order of removal.

•
Replace any damage clips.

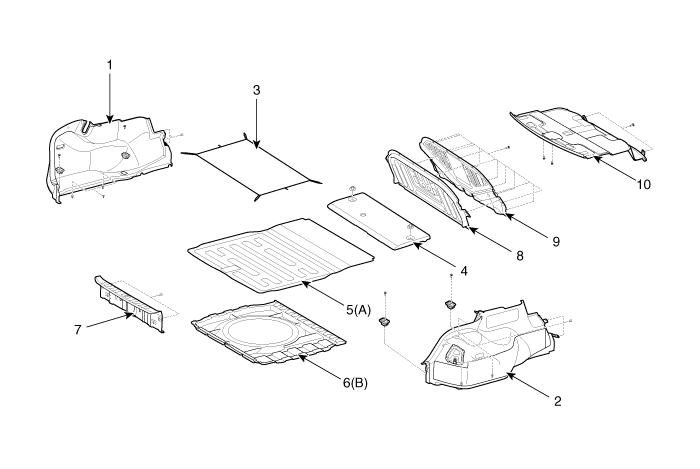

1. Luggage side trim [LH]
2. Luggage side trim [RH]
3. Luggage net
4. Partition board trim
5. Luggage covering complete
6. Luggage under cover
7. Rear transverse trim
8. Partition lower trim
9. Panel & trim partition
10. Partition upper trim
