Replacement |
[LH] |
|
|
1. |
Remove the rear seat cushion assembly [LH].
(Refer to Rear Seat - "Rear Seat Assembly") |
2. |
Remove the protector (A) located in the rear part of the rear seat cushion. |
3. |

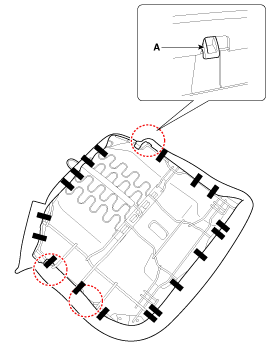

After removing the hog-ring clips on the rear of seat cushion cover and remove the rear seat cushion cover (A). |
4. |
Install in the reverse order of removal. |
G Sensor Schematic Diagrams
Circuit diagram
1.
G-sensor connector
2.
G-sensor terminal function
NoFunction1Signal2Ground3Power(5V)
3.
Circuit diagram ...
Light bulbs
WARNING - Working on the lights
Prior to working on the light, firmly apply the parking brake, ensure that
the ignition switch is turned to the LOCK position and turn off the lights to avoid
sudd ...
Main Crash Pad Assembly Components and Components Location
Component Location
1. Main crash pad assembly
...
