Description
1.
Power Seat Module (PSM)

(1)
Main features
Item
Description
Installation location
 Lower section of the driver side seat
Component configuration
1.
Embedded with CAN Communication IC
2.
Seat memory save and recall check buzzer embedded
Main features
1.
Manual function (manual control through switch operation)
2.
Memory switch can store and recall seat positions for 2 drivers
3.
Out synchronization (can be activated/deactivated via USM function or scanner)
4.
Internal buzzer control by save & recall
5.
Headrest SW, slide, and recline limit switch applied
6.
B+ recall
7.
Added limit setting mode using the scanner

(2)

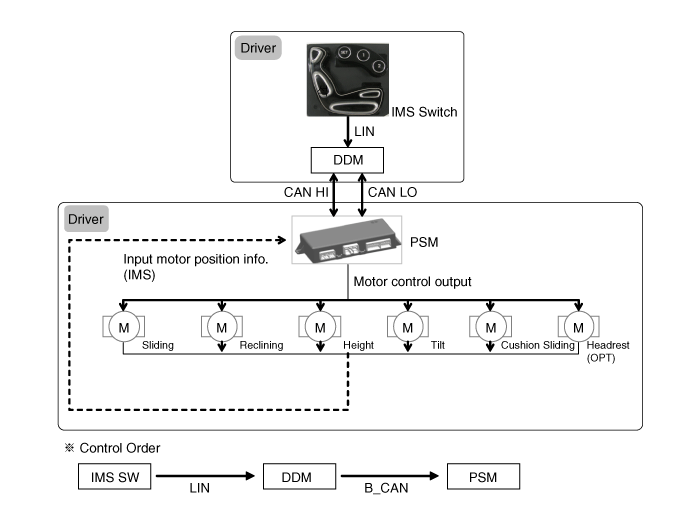

Power seat signal flow

(3)
For detail information about circuit diagram, refer to the power window switch.
(Refer to IMS (Integrated Memory System) - "Memory Power Seat Unit")
