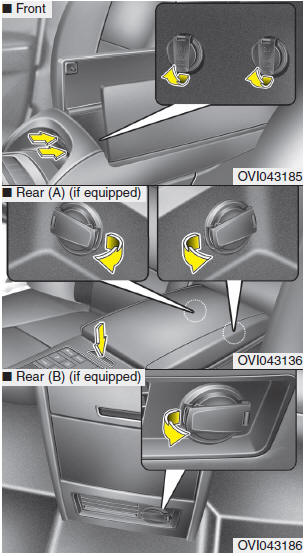

The power outlet is designed to provide power for mobile telephones or other devices designed to operate with vehicle electrical systems. The devices should draw less than 10 amps with the engine running.
When using the front power outlet, you can close the center console cover after pulling out the wire through the front corner of the both side of the center console.
(The USB charger and cable are not provided in your vehicle.)
CAUTION
WARNING
Do not put a finger or a foreign element (pin, etc.) into a power outlet and do not touch with a wet hand. You may get an electric shock.
