| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the trunk trim in the trunk.
(Refer to Body - "Trunk") |
| 3. |
Remove the power latch (A) after removing the bolts (2EA) and connector (B).
|
| Installation |
| 1. |
Install the power latch and connector. |
| 2. |
Install the trunk trim. |
| 3. |
Connect the negative (-) battery terminal and check the power trunk module correctly. |
| Inspection |
Power Trunk Lid Inspection With GDS
| 1. |
Check the power trunk module input/output value by using the
GDS. If the operation of power trunk module is abnormal, replace power
trunk drive unit. |
| 2. |
To check the DTC of the power trunk module, select "PTM" |
| 3. |

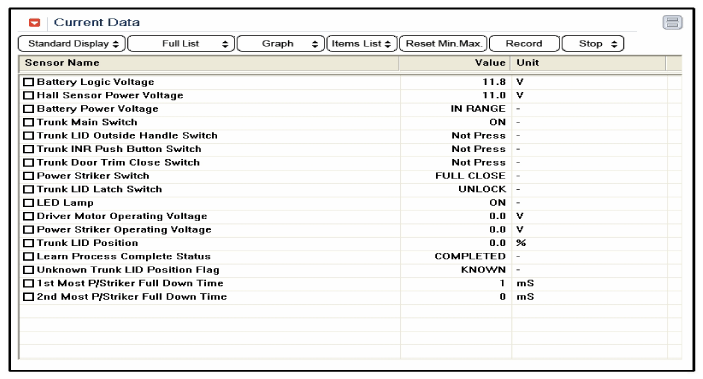

Select "Input/output monitoring".
|
Power Trunk Module Drive Unit Repair procedures
Removal
•
When removing and installing the trunk lid, an assistant is necessary.
•
Take care not to be closed the trunk when removing the push rod.
•
Wear ...
Power Striker Repair procedures
Inspection
Power Trunk Lid Inspection With GDS
1.
Check the power trunk module input/output value by using the
GDS. If the operation of power trunk module is abnormal, replace power
trunk dri ...
