| Inspection |
Diagnosis With GDS
| 1. |
It will be able to diagnose defects of DDM/ADM with GDS
quickly. GDS can operates actuator forcefully, input/output value
monitoring and self diagnosis. |
| 2. |
Select model and "IPM". |
| 3. |
Select the "DDM (Power window main)" to check. |
| 4. |

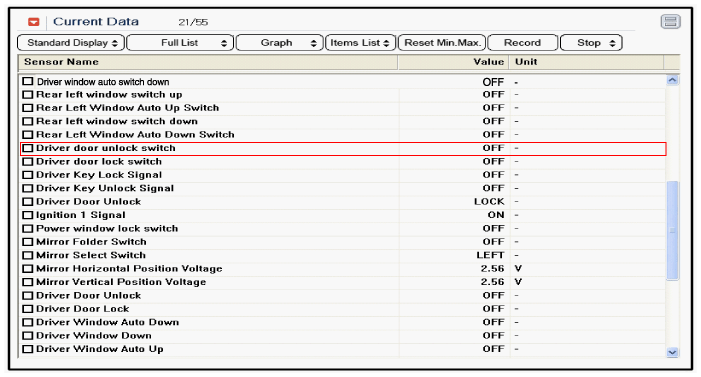

Select "Input/output monitoring", if you will check current
data of power door lock system. It provides input/output status of
DDM/ADM.
|
| 5. |

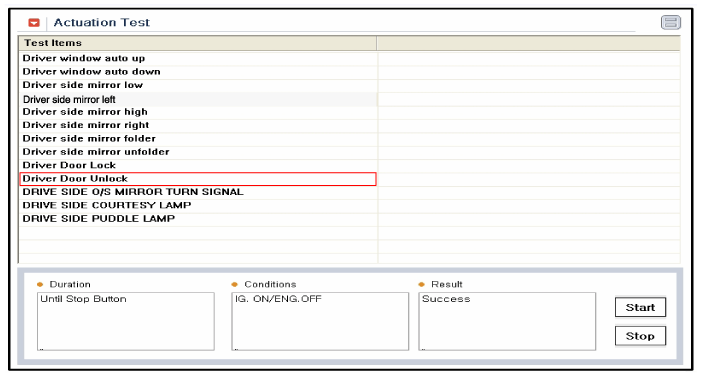

If you will check the power door lock operation forcefully, select "Actuation test".
|
| 6. |

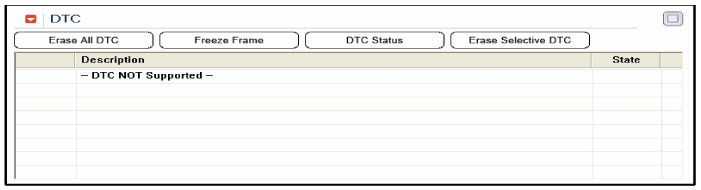

To check the DTC of the DDM/AMD module, select "Diagnostic trouble codes"
|
Power Door Lock Actuators Repair procedures
Inspection
Front Door Lock Module Inspection
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2.
Remove the front door module.
(Refer to Body - "Front Door Module")
3.
...
Power Mirrors
...
