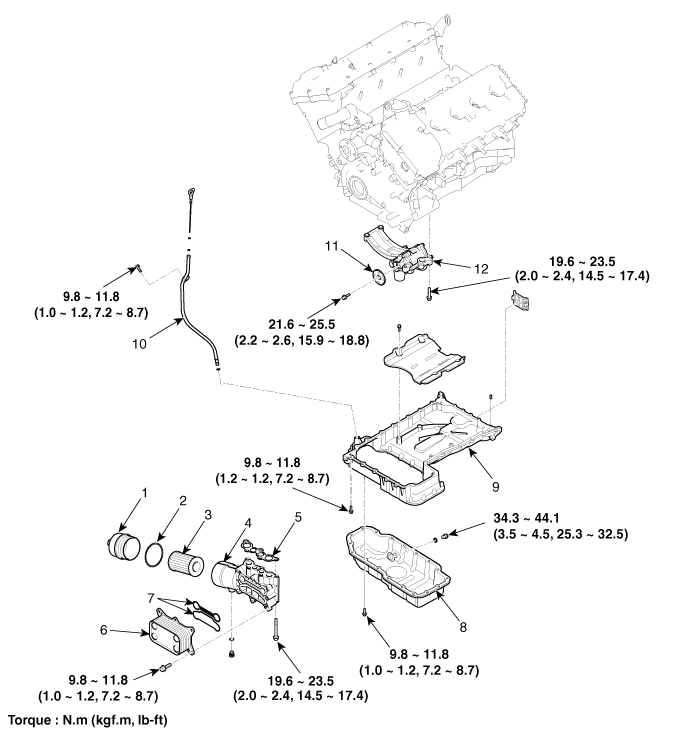

| Components |
| 1. Oil filter cap 2. Oil filter cap O-ring 3. Oil filter element 4. Oil filter body | 5. Oil filter assembly gasket 6. Oil cooler 7. Oil cooler gasket 8. Lower oil pan | 9. Upper oil pan 10. Oil level gauge 11. Oil pump sprocket 12. Oil pump assembly |
Engine Oil Repair procedures
Engine Oil And Filter Replacement
•
Prolonged and repeated contact with mineral oil will result
in the removal of natural fats from the skin, leading to dryness,
irri ...
Oil Pump Repair procedures
Removal
1.
Remove the sub frame.
(Refer to SS group)
2.
Drain engine oil.
(1)
Remove the oil filler cap.
(2)
After lifting the car, remove the oil drain plug and drain oil into a conta ...
