Hyundai Equus: Master Cylinder Components and Components Location - Brake System - Brake System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Master Cylinder Components and Components Location

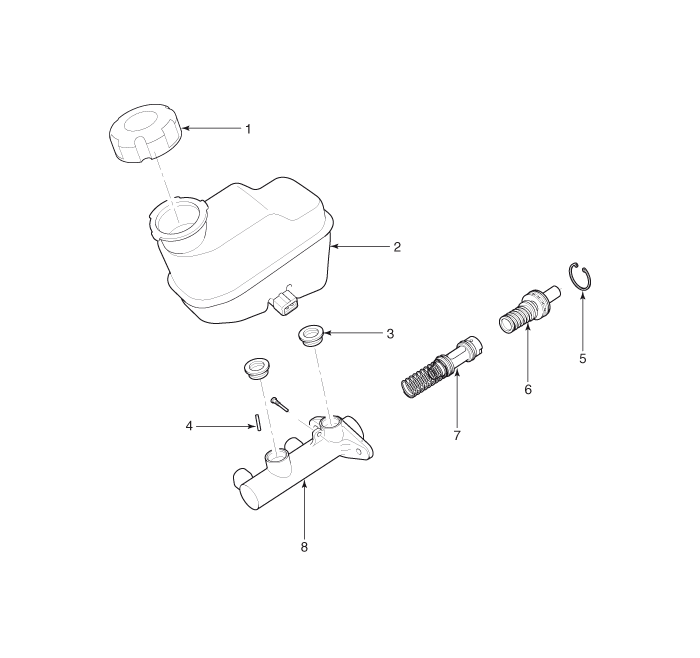

1. Reservoir cap
2. Reservoir
3. Grommet
4. Cylinder pin
5. Retainer
6. Primary piston assembly
7. Secondary piston assembly
8. Master cylinder body
