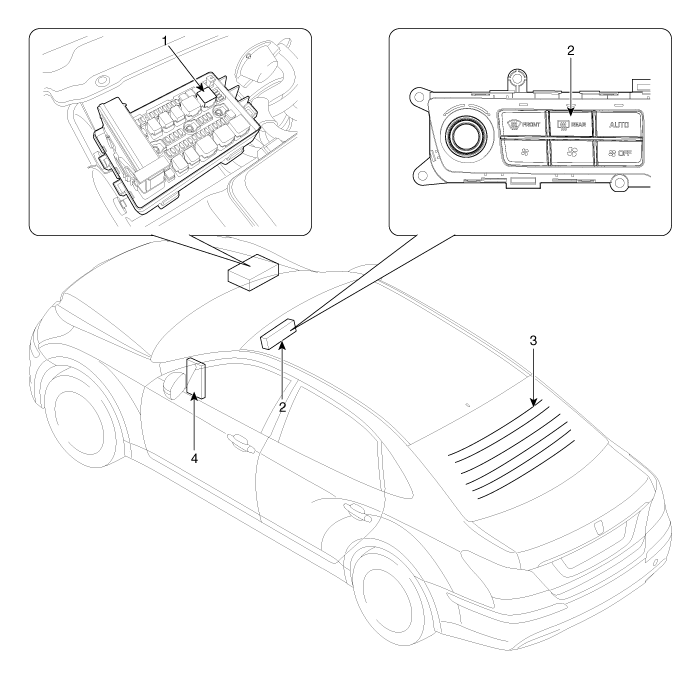

| Component Location |
| 1. Engine room relay box (Rear glass defogger) 2. Rear window defogger switch (A/C controller) | 3. Rear window defogger 4. Body control unit |
