Hyundai Equus: Intake Air Temperature Sensor (IATS) Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Intake Air Temperature Sensor (IATS) Schematic Diagrams

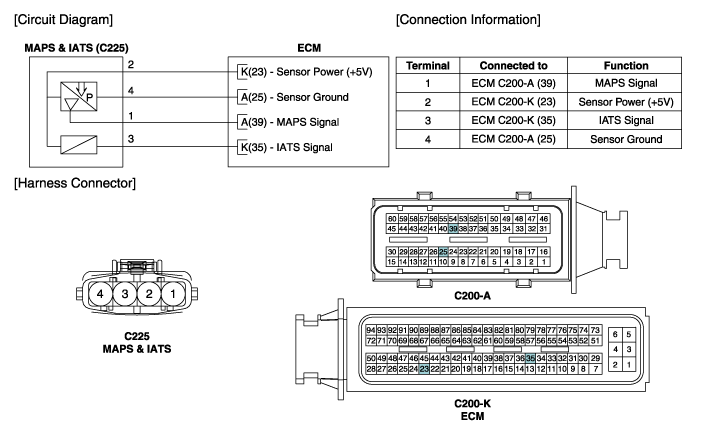

Circuit Diagram

    Intake Air Temperature Sensor (IATS) Specifications
    Specification TemperatureResistance (kx)°C°F-40-4040.93 ~ 48.35-20-413.89 ~ 16.030325.38 ~ 6.0910503.48 ~ 3.9020682.31 ~ 2.57401041.08 ~ 1.21601400.54 ~ 0.66801760.29 ~ 0.34 ...

    Intake Air Temperature Sensor (IATS) Repair procedures
    Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. Specification: Refer to "Specification" ...
