Removal
[Front Height Sensor]

•
Avoid suffering excessive impact.
•
Do not entering the water into pin inside.
•
Take care not to be damaged height sensor witch is beakable.
1.
Removal front wheel & tire .
Tightening torque:
90.0 ~ 110.0 N.m(9.0 ~ 11.0 kgf.m, 65.0 ~ 80.0 lb-ft)
2.
Loosen the bolt and then remove the height sensor (A).

3.
Remove the connector & bolt.

4.
Installation is the reverse of removal.
[Rear Height Sensor]
1.
Remove the rear wheel & tire.
Tightening torque :
90.0 ~ 110.0 N.m(9.0 ~ 11.0 kgf.m, 65.0 ~ 80.0 lb-ft)
2.
Remove the height sensor (B).

3.
Remove the connector & bolt.

4.
Installation is the reverse of removal

•
Because fragile, take care not to damaged.

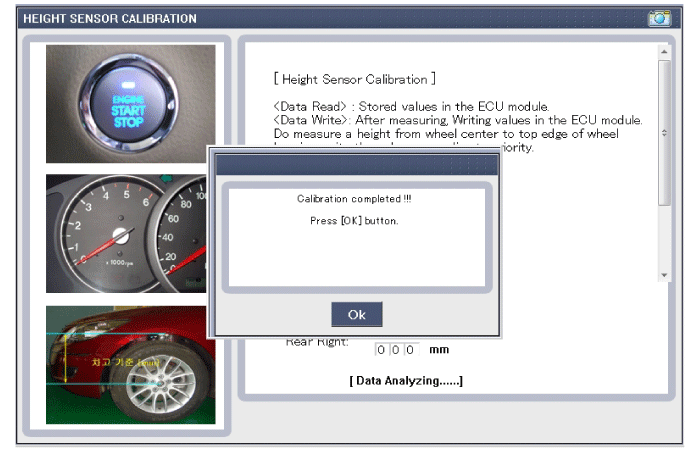

Height sensor calibration
1.
Connect self-diagnosis connector (16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2.

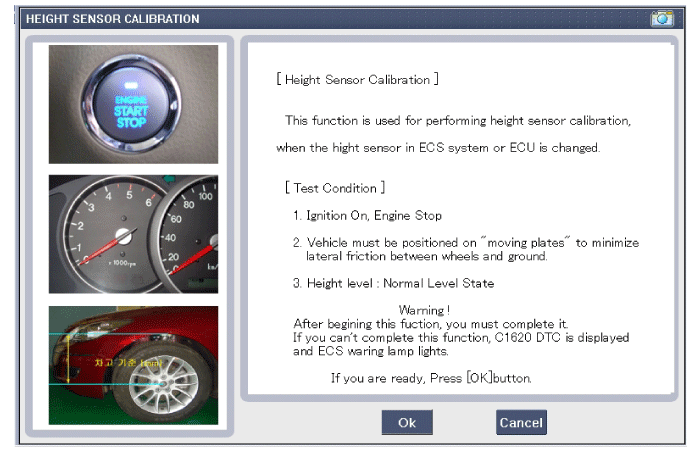

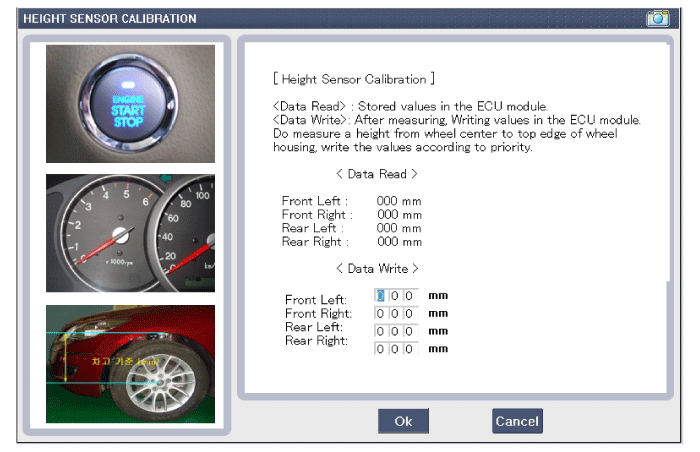

Select the "Vehicle Model" and "Initial Height Sensor Screen" on GDS vehicle selection screen, then select OK.
