Speedometer

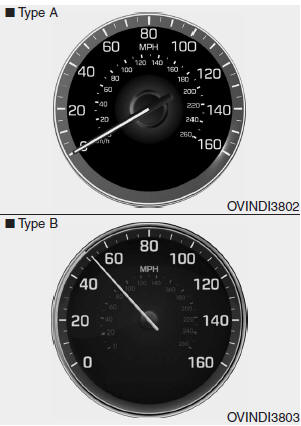

The speedometer indicates the speed of the vehicle and is calibrated in miles


The speedometer indicates the speed of the vehicle and is calibrated in miles per hour (mph) and/or kilometers per hour (km/h).

✽ NOTICE

On the "User Settings Mode" of the LCD display, you can set the font size of the speedometer (Normal or Large) (Type B).

Tachometer

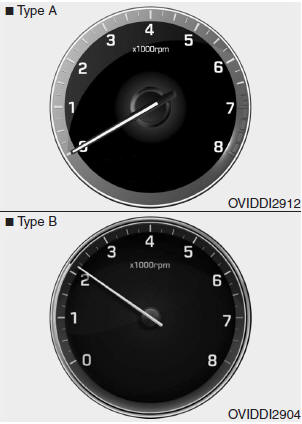

The tachometer indicates the approximate number of engine revolutions per minute


The tachometer indicates the approximate number of engine revolutions per minute (rpm).

Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.

CAUTION

Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.

Engine Coolant Temperature Gauge

This gauge indicates the temperature of the engine coolant when the engine is


This gauge indicates the temperature of the engine coolant when the engine is running.

CAUTION

If the gauge pointer moves beyond the normal range area toward the H position, it indicates overheating that may damage the engine. Do not continue driving with an overheated engine. If your vehicle overheats, refer to If the Engine Overheats in chapter 6.

WARNING

Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could severely burn. Wait until the engine is cool before adding coolant to the reservoir.

Fuel Gauge

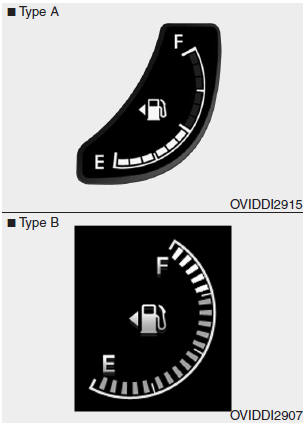

This gauge indicates the approximate amount of fuel remaining in the fuel tank.


This gauge indicates the approximate amount of fuel remaining in the fuel tank.

✽ NOTICE

  • The fuel tank capacity is given in chapter 8.
  • The fuel gauge is supplemented by a low fuel warning light, which will illuminate when the fuel tank is nearly empty.
  • On inclines or curves, the fuel gauge pointer may fluctuate or the low fuel warning light may come on earlier than usual due to the movement of fuel in the tank.

WARNING - Fuel Gauge

Running out of fuel can expose vehicle occupants to danger. You must stop and obtain additional fuel as soon as possible after the warning light comes on or when the gauge indicator comes close to the E (Empty) level.

CAUTION

Avoid driving with a extremely low fuel level. Running out of fuel could cause the engine to misfire damaging the catalytic converter.

Odometer

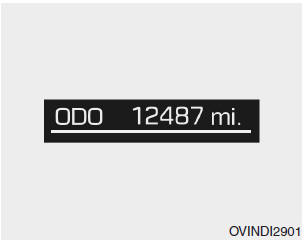

The odometer Indicates the total distance that the vehicle has been driven and


The odometer Indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

- Odometer range : 0 ~ 999999 kilometers or miles.

Outside Temperature Gauge

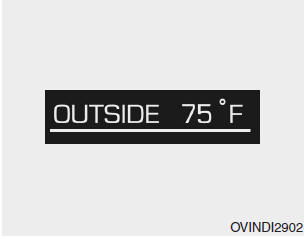

This gauge indicates the current outside air temperatures by 1F (1C).


This gauge indicates the current outside air temperatures by 1F (1C).

- Temperature range : -40F ~ 140F (-40C ~ 60C)

The outside temperature on the display may not change immediately like a general thermometer to prevent the driver from being inattentive.

The temperature unit (from C to F or from F to C) can be changed by pressing the OFF button and AUTO button on the front climate control panel for 3 seconds simultaneously.

Automatic Transmission Shift  Indicator

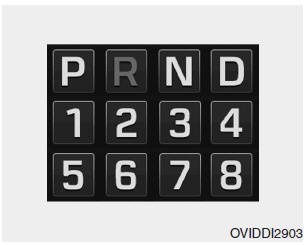

This indicator displays which automatic transmission shift lever is selected.


This indicator displays which automatic transmission shift lever is selected.

  • Park :P
  • Reverse : R
  • Neutral : N
  • Drive :D
  • Sports Mode : 1, 2, 3, 4, 5, 6, 7, 8



    LCD Display Control
    The LCD display modes can be changed by using the control buttons on the steering wheel. (1) button : Changing LCD modes (right to left), or returning to previous position (2) button : Chan ...
