Hyundai Equus: Crash Pad Lower Panel Repair procedures - Crash Pad - Body (Interior and Exterior) - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: Crash Pad Lower Panel Repair procedures

Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Lower Panel Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

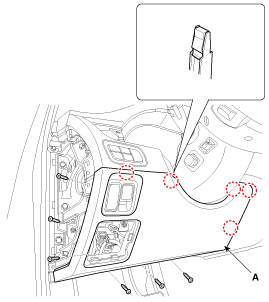

Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

2.
After loosening the mounting screws, then remove the crash pad lower panel (A).

3.
Disconnect the crash pad lower panel switch connector (A) and knee airbag (KAB) module connector (B).

4.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
•
Replace any damage clips.
