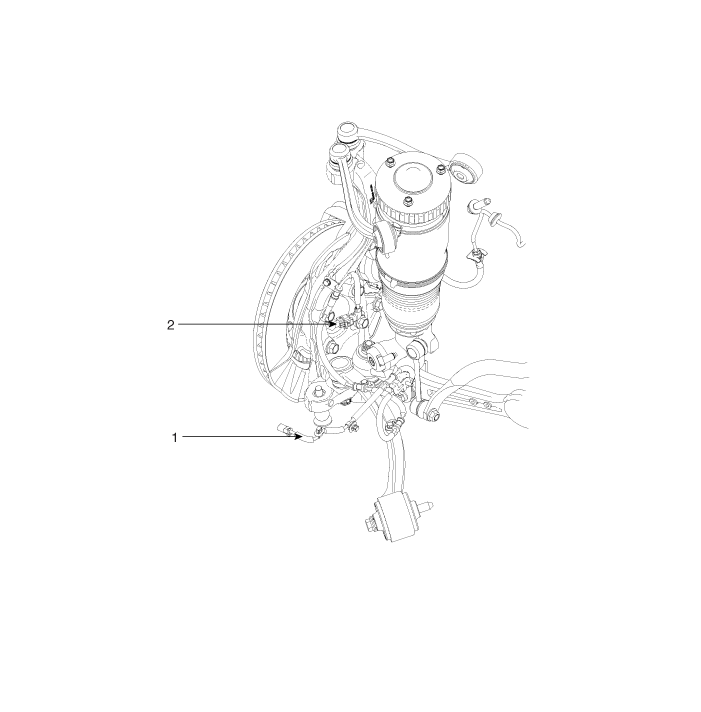

Hyundai Equus: Front Wheel Speed Sensor Components and Components Location

ESP Control Unit Repair procedures

Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable 2. Remove the Engine room junction box after removing the cover. 3. Disconnect the brake tubes from the HE ...

Front Wheel Speed Sensor Repair procedures

Removal 1. Remove the connector after removing the front wheel speed sensor clip. 2. Remove the front wheel speed sensor. (Refer to Driveshaft and Axle - "Front Axle Assembly") 3. Install ...

See also:

TPMS Sensor Repair procedures
Removal Tire Removal 1. Deflate tire & remove balance weights.     • The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker sho ...

Instrument Cluster Components and Components Location
Components Connector Pin Information No.DescriptionNo.Description1Aig bag +21-2-22Speaker +3Rheostat down switch23Speaker -4Rheostat up switch24-5-25Vehicle speed 4P output6Oil pressure26R Output7 ...

Compressor Components and Components Location
Components 1. Dyer2. Motor3. Connected to tube4. Reverse valve connector5. Connector for motor driveing ...
