Hyundai Equus: Driver position memory system
Second generation VI (2009–2026) / Hyundai Equus 2009-2026 Owners Manual / Features of your vehicle / Driver position memory system

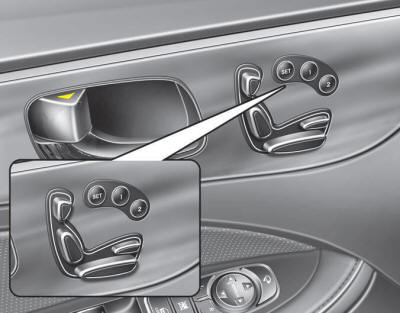

This system is provided to store and recall the driver's seat, outside rearview mirrors, steering wheel positions and HUD (Head-Up Display) height. If the battery is disconnected, the position memory will be lost and the driving positions must be stored in the system again. If the memory system does not operate normally, have the driver position memory system checked by an authorized EQUUS dealer.
WARNING
Never attempt to operate the driver position memory system while driving. This may cause loss of vehicle control resulting in an accident.
Resetting the Sunroof
If the battery has been discharged or disconnected, or if the related fuse has
been replaced or disconnected, reset the Sunroof as follows:
1. The Engine Start/Stop Button must be in the ON positio ...
Storing Position into Memory
1. Check that the shift lever is in P (Park) and the Engine Start/Stop Button
is in the ON position.
2. Adjust the driver’s seat, outside rearview mirrors, steering wheel and HUD (Head-Up
Displ ...
