Hyundai Equus: Detecting sensor

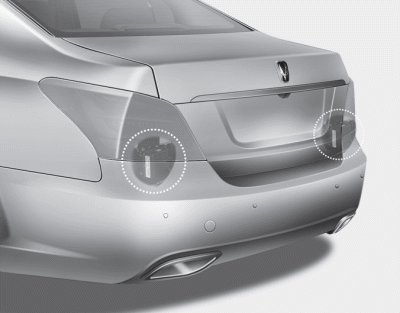

The sensors are located inside of the rear bumper.
Always keep the rear bumper clean for the system to work properly.
Warning type
The system will activate when:
1.The system is on
2.Vehicle speed is above 9.3 mph (15 km/h)
3.Other vehicles are detected in the rear side
If a vehicle is detected within the boundary of the ...
Warning message
If the detecting sensor performance is low or overheated by foreign substances
on the rear bumper, the message will appear to notify the driver.
Also, the message may appear when there is heavy ...
