Hyundai Equus: Components and Components Location - Multi-view Camera System - Body Electrical System - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Components and Components Location

Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body Electrical System / Multi-view Camera System / Components and Components Location

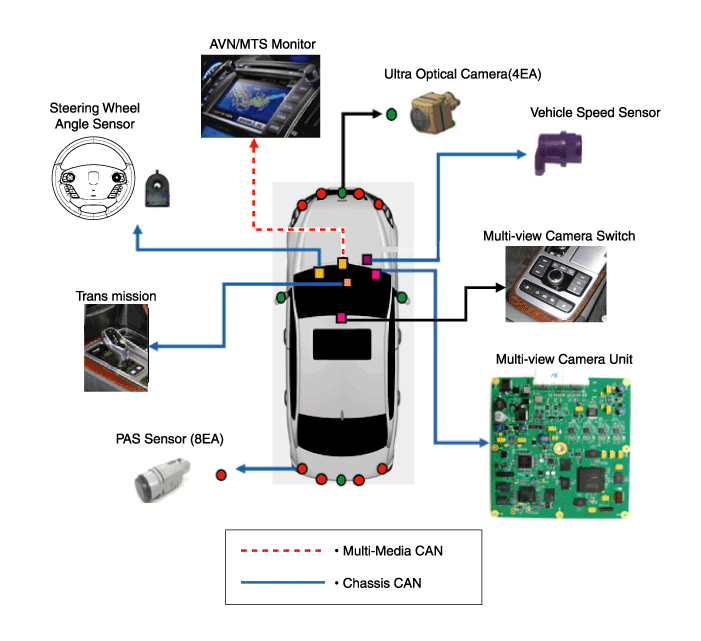

Components

Component Functions
No.
Components
Quantity
Major Role
1
 Multi-view Camera
Unit
1
-
Input video information from 4 channel cameras and process display
-
Vehicle communication (CAN) and system control
-
Screen output in 8 view modes
2
Ultra optical camera
(190 degrees)
4
-
Record vehicle's surrounding area
3
AVN Head Unit
1
-
Provide driver with video via Multi-view Camera ECM output
-
Send user input data to Multi-view Camera ECU
4
 Multi-view Camera Switch
1
-
Input video feed in Front Mode

    Multi-view Camera System
    ...

    Description and Operation
    Description Multi-view Camera System is the system that allows video monitoring of 360 degrees around the vehicle. The system includes 4 ultra optical camera mounted around the vehicle (front, ...
