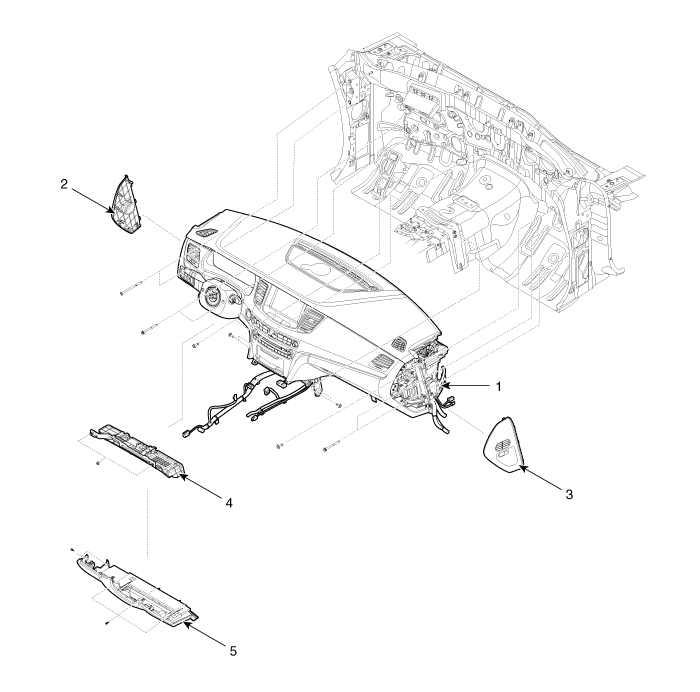

| Components (1) |
| 1. Main crash pad assembly 2. Crash pad side cover [LH] 3. Crash pad side cover [RH] | 4. Crash pad under cover [LH] 5. Crash pad lower panel |

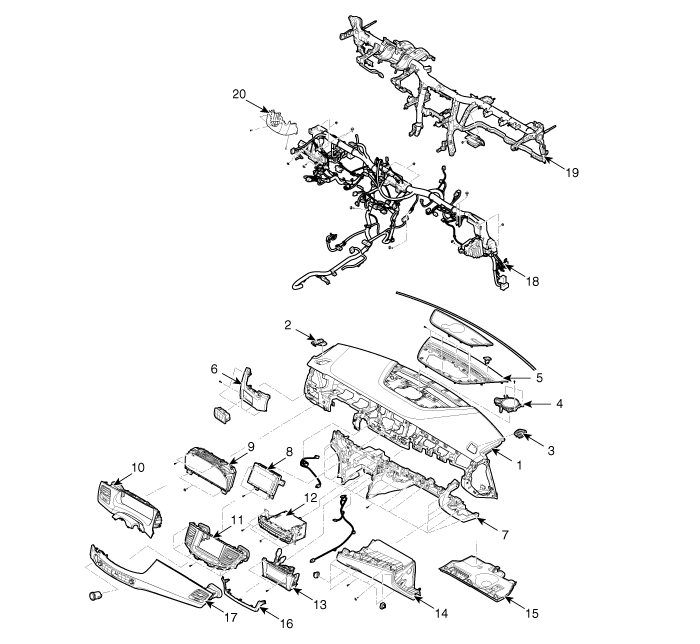

| Components (2) |
| 1. Main crash pad assembly 2. Side def nozzle [LH] 3. Side def nozzle [RH] 4. Center speaker assembly 5. Center speaker grill 6. Crash pad upper panel [LH] 7. Crash pad center panel 8. Front monitor assembly 9. Cluster gauge assembly 10. Cluster fascia panel | 11. Center fascia complete assembly 12. Head unit assembly 13. Center fascia lower tary 14. Glove box housing 15. Crash pad under cover [RH] 16. Center fascia lower panel 17. Center lower cover 18. Crash pad main wiring harness 19. Cowl cross bar assembly 20. Steering column shroud lower panel |
