| Components |

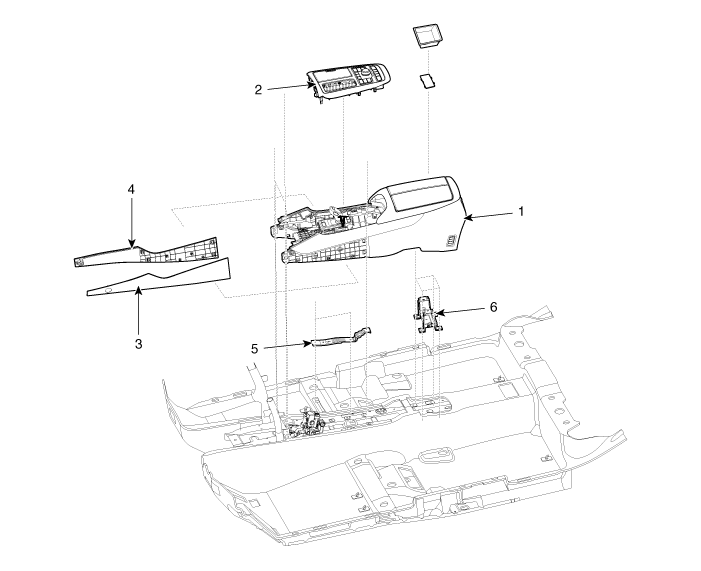

| [Front Console] |
| 1. Floor console assembly 2. Front console upper complete 3. Console side cover [LH] | 4. Console side cover [RH] 5. Console center mounting bracket 6. Console rear mounting bracket |

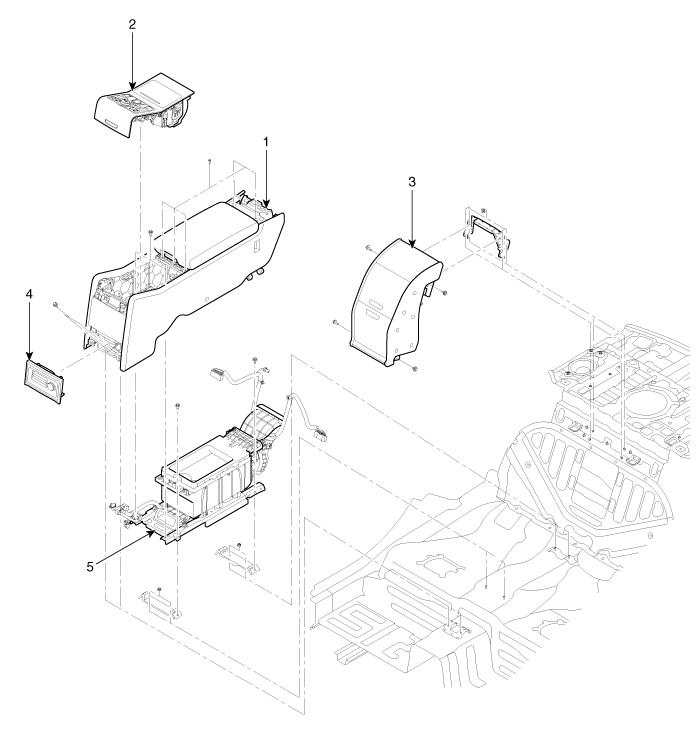

| [Rear Console] |
| 1. Rear console upper complete assembly 2. Rear console upper cover 3. Rear tower console complete assembly | 4. Nozzle assembly 5. Cool box complete |
Floor Console
...
Floor Console Assembly Components and Components Location
Component Location
1. Floor console assembly
...
