Hyundai Equus: Canister Close Valve (CCV) Schematic Diagrams
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Canister Close Valve (CCV) Schematic Diagrams
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Engine Control/Fuel System / Engine Control System / Canister Close Valve (CCV) Schematic Diagrams

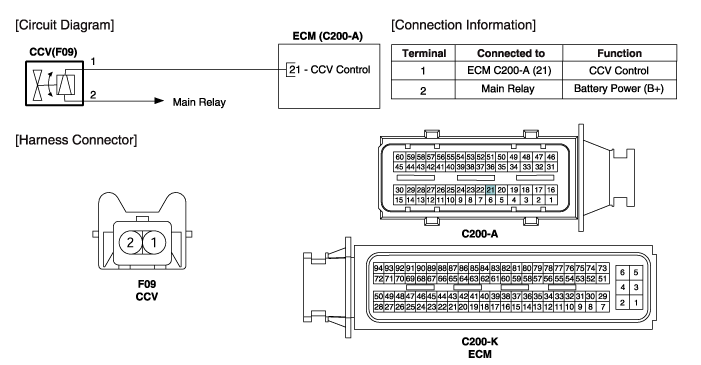

| Circuit Diagram |
Canister Close Valve (CCV) Specifications
Specification
ItemSpecificationCoil Resistance (x)23.0 ~ 26.0 [20°C(68°F)
...
Canister Close Valve (CCV) Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the CCV connector.
3.
Measure resistance between the CCV terminal 1 and 2.
4.
Check that the resistance is within the specific ...
