Hyundai Equus: Schematic Diagrams
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Restraint / SRSCM / Schematic Diagrams
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Restraint / SRSCM / Schematic Diagrams

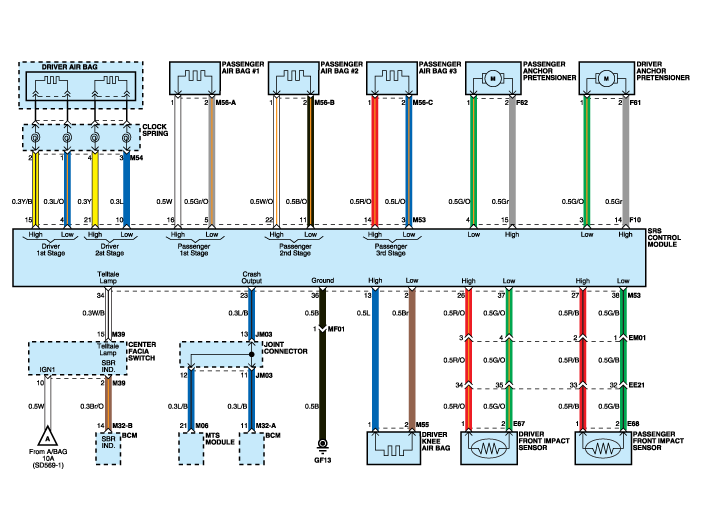

| Circuit Diagram (1) |

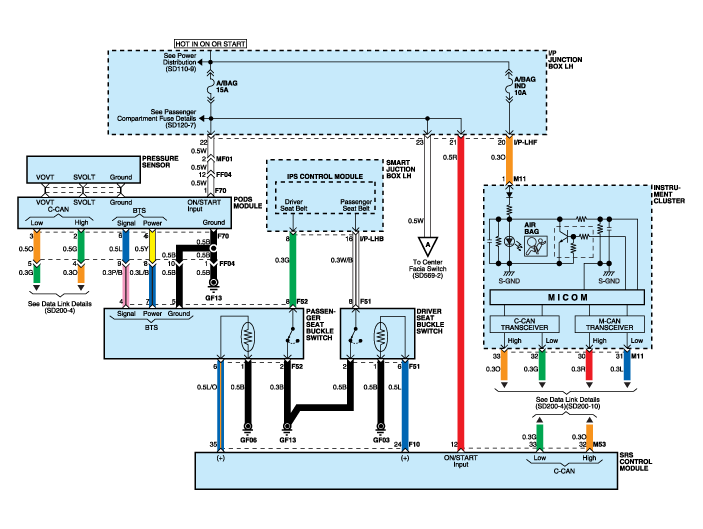

| Circuit Diagram (2) |

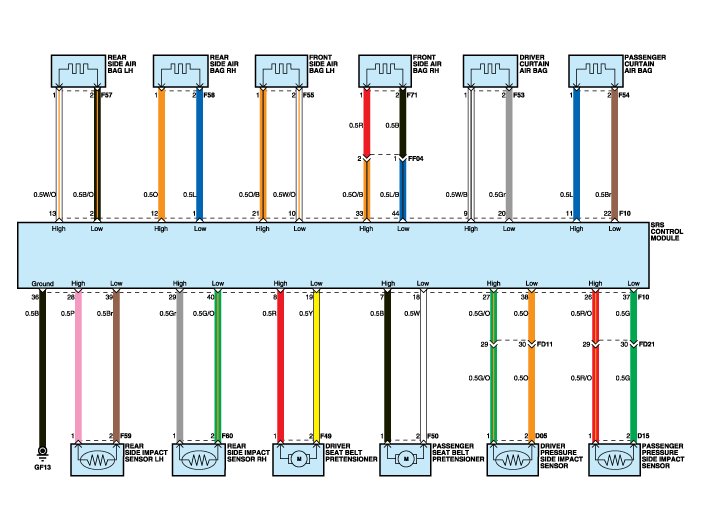

| Circuit Diagram (3) |

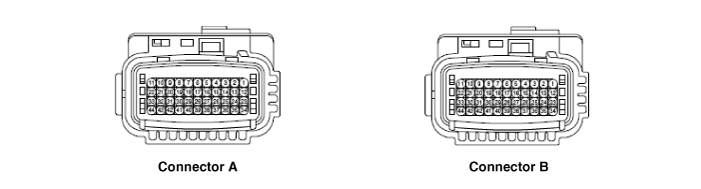

| SRSCM Connector terminal |
| No. | Function (Connector A) | No. | Function (Connector B) |
| 1 | - | 1 | Rear Side Air Bag RH (Low) |
| 2 | Driver Knee Air Bag (Low) | 2 | Rear Side Air Bag LH (Low) |
| 3 | Passenger Air Bag (3rd Stage - Low) | 3 | Driver Anchor Pretensioner (Low) |
| 4 | Driver Air Bag (1st Stage - Low) | 4 | Passenger Anchor Pretensioner (Low) |
| 5 | Passenger Air Bag (1st Stage - Low) | 5 | - |
| 6 | - | 6 | - |
| 7 | - | 7 | Passenger Seat Belt Pretensioner (High) |
| 8 | - | 8 | Driver Seat Belt Pretensioner (High) |
| 9 | - | 9 | Driver Curtain Air Bag (High) |
| 10 | Driver Air Bag (2nd Stage - Low) | 10 | Front Side Air Bag LH (Low) |
| 11 | Passenger Air Bag (2nd Stage - Low) | 11 | Passenger Curtain Air Bag (High) |
| 12 | Smart Junction Box LH (Fuse - F26) | 12 | Rear Side Air Bag RH (High) |
| 13 | Driver Knee Air Bag (High) | 13 | Rear Side Air Bag LH (High) |
| 14 | Passenger Air Bag (3rd Stage - High) | 14 | Driver Anchor Pretensioner (High) |
| 15 | Driver Air Bag (1st Stage - High) | 15 | Passenger Anchor Pretensioner (High) |
| 16 | Passenger Air Bag (1st Stage - High) | 16 | - |
| 17 | - | 17 | - |
| 18 | - | 18 | Passenger Seat Belt Pretensioner (Low) |
| 19 | - | 19 | Driver Seat Belt Pretensioner (Low) |
| 20 | - | 20 | Driver Curtain Air Bag (Low) |
| 21 | Driver Air Bag (2nd Stage - High) | 21 | Front Side Air Bag LH (High) |
| 22 | Passenger Air Bag (2nd Stage - High) | 22 | Passenger Curtain Air Bag (Low) |
| 23 | Crash Output : BCM, MTS Module | 23 | - |
| 24 | - | 24 | Driver Seat Belt Buckle Switch (Sensor) |
| 25 | - | 25 | - |
| 26 | Driver Front Impact Sensor (High) | 26 | Passenger Pressure Side Impact Sensor (High) |
| 27 | Passenger Front Impact Sensor (High) | 27 | Driver Pressure Side Impact Sensor (High) |
| 28 | - | 28 | Rear Side Impact Sensor LH (High) |
| 29 | - | 29 | Rear Side Impact Sensor RH (High) |
| 30 | - | 30 | - |
| 31 | - | 31 | - |
| 32 | C-CAN (High) | 32 | - |
| 33 | C-CAN (Low) | 33 | Front Side Air Bag RH (High) |
| 34 | - | 34 | - |
| 35 | - | 35 | Passenger Seat Belt Buckle Switch (Sensor) |
| 36 | Ground (GF13) | 36 | Ground (GF13) |
| 37 | Driver Front Impact Sensor (Low) | 37 | Passenger Pressure Side Impact Sensor (High) |
| 38 | Passenger Front Impact Sensor (Low) | 38 | Driver Pressure Side Impact Sensor (Low) |
| 39 | - | 39 | Rear Side Impact Sensor LH (Low) |
| 40 | - | 40 | Rear Side Impact Sensor RH (Low) |
| 41 | - | 41 | - |
| 42 | - | 42 | - |
| 43 | - | 43 | - |
| 44 | - | 44 | Front Side Air Bag RH (Low) |
