Hyundai Equus: Solenoid Valve Schematic Diagrams - Air Suspension System - Suspension System - Hyundai Equus VI 2009-2026 Service ManualHyundai Equus: Solenoid Valve Schematic Diagrams

Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Suspension System / Air Suspension System / Solenoid Valve Schematic Diagrams

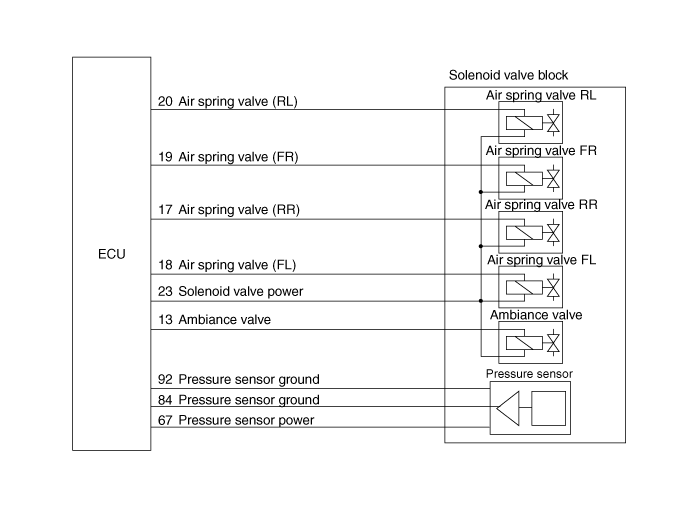

Circuit diagram
1.
Solenoid valve connector terminal

2.
Solenoid valve terminal function
Terninal
Function
1
Air spring valve FL
2
Ambiance valve
3
Air spring valve RR
4
Air spring valve RL
5
Solenoid valve power(12V)
6
Solenoid valve power(12V)
7
Pressure sensor ground
8
Air spring valve FR
9
Pressure sensor  signal
10
Pressure sensor  power

3.
Circuit diagram

    Solenoid Valve Description and Operation
    Description Four air spring solenoid valves (‘-’ control) and one ambient solenoid valve are embedded inside this solenoid valve block as shown in the circuit diagram below. When connecting ...

    Solenoid Valve Repair procedures
    Removal     • Before replacing the relevant parts, use GDS equipment to fully discharge the air from the relevant parts. (Refer to Air Suspension System - "Repair procedures ...
