Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Remove the rear seat back assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
4.
Slighty remove the rear door body side weatherstrip.
5.

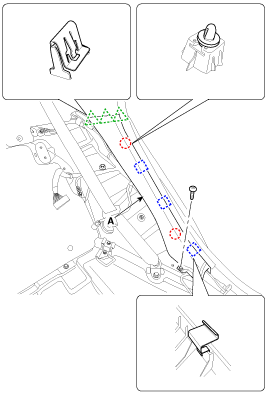

Using a screwdriver or remover, remove the rear wheel house trim (A).

6.
Install in the reverse order of removal.

•
Replace any damage clips.
