Hyundai Equus: Rear Door Module Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Module Components and Components Location
Second generation VI (2009–2026) / Hyundai Equus VI 2009-2026 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Module Components and Components Location

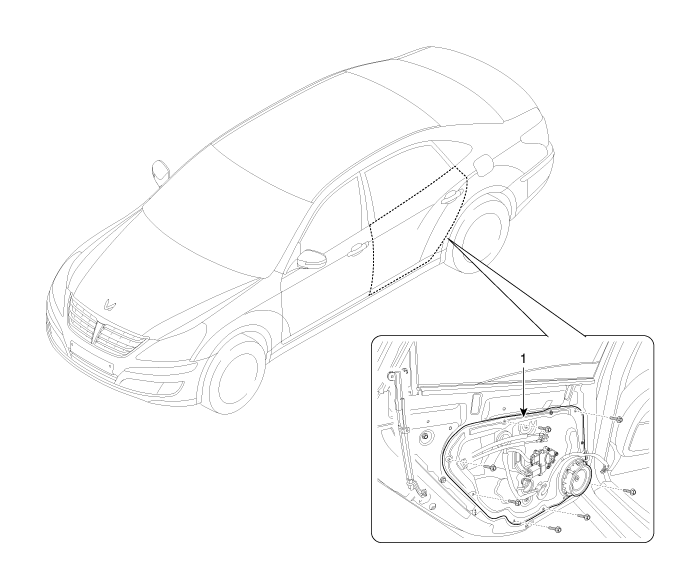

| Component Location |
| 1. Rear door module |
Rear Door Window Glass Repair procedures
Replacement
1.
Pull down rear door window glass by pressing the power window glass switch.
2.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
3.
After loosening the mo ...
Rear Door Module Repair procedures
Replacement
1.
Remove the rear door window glass.
(Refer to Rear Door - "Rear Door Window Glass")
2.
Remove the rear door outside handle.
(Refer to Rear Door - "Rear Door Outside Handle")
...
